2025 Chassis Cab F-550^® XL

Build & Price

Key Features

Interior of a 2025 Ford Super Duty® showing the touchscreen being used

Ford Pro^™ Vehicle Integration System 2.0

This hardware interface provides a single-entry point to the Chassis Cab model's electrical architecture, digitally connecting the upfit to the vehicle. The peripheral devices, such as salt spreaders, light boxes, etc., can now be directly controlled from the SYNC^®²⁷screen inside the cab.

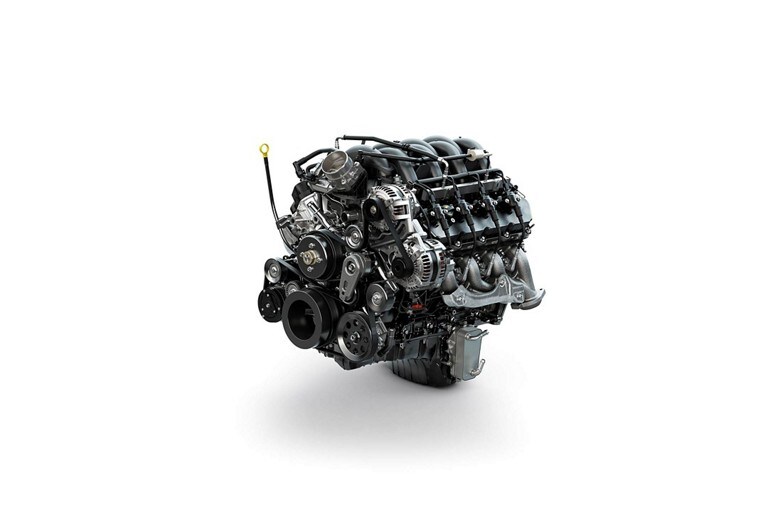

7.3L 2V DECVT V8 Gas Engine

This beast is made for strenuous duty, delivering impressive power, durability, and performance. Idling for long periods of time. Variable-cam timing creates optimal air-fuel ratio in the low r.p.m. range to help you powering through those extra heavy loads.

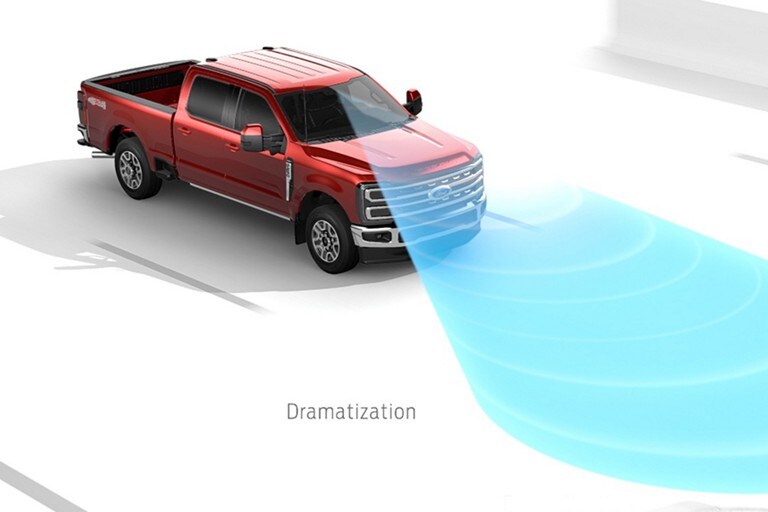

Pre-Collision Assist^® With Automatic Emergency Braking (AEB)

This feature scans the road ahead and helps alert you to potential collisions with vehicles detected in your path. If an impact becomes imminent and you don't take corrective action, the brakes can apply automatically. *

*Driver-assist features are supplemental and do not replace the driver's attention, judgment and the need to control the vehicle. Pre-Collision Assist with Automatic Emergency Braking detects pedestrians, but not in all conditions, and can help avoid or reduce a collision. It does not replace safe driving. See Owner's Manual for details and limitations.

Interior Features

Climate

Standard

Air Conditioning - Manual Temperature Control

Optional

Rapid-Heat Supplemental Cab Heater (Diesel)

Comfort and Convenience

Standard

Cruise control
Dash-top tray
Dome Lamp - door-activated instrument panel switch operated with delay
Floor Covering – Black vinyl
Grab handles – driver and front passenger and roof ride handles; front passenger (also over rear doors with Crew Cab)
Headliner – color coordinated cloth
Instrumentation with tachometer and Message Center including odometer, trip odometer, distance-to-empty, average fuel economy, engine hour meter and warning messages
4.2 Productivity Screen display includes menus for Gauge Setup, Trip Computer, Fuel Economy and Towing/Off-Road applications five (5) button message control on steering wheel (included with the SYNC^® and SYNC^® Services)
Map lights - dual (front and rear with Crew Cab)
Power Equipment – accessory delay
Power Equipment – Power door locks and windows
Powerpoint – Two Powerpoint in instrumentation center
Steering Wheel Audio Controls
Steering Wheel - Black urethane
Color-coordinated w/ glove box
Visors – vinyl, driver with pocket, passenger with uncovered mirror
Overhead Console with 6 Upfitter Switches
Tilt and Telescoping steering wheel/column (Manual on XL and XLT; Power with memory on Lariat)
Six Factory-Installed Auxiliary Upfitter Switches
Windshield wipers – intermittent control
Vehicle Integration System 2.0

Optional

120-Volt/400-Watt Outlet Dash-Mounted
Rearview Camera and Prep Kit
Remote Start System
Exterior Backup Alarm
Speed Limitation – 75 MPH governed top speed (fleet only)
Interior Work Surface

Entertainment Systems

Standard

Audio – FM Stereo, (4 Speakers regular cab, 6 speakers Super Cab and Crew Cab)
SYNC^® 4
5G Wi-Fi Capability

Seating

Standard

Seats – Front, Vinyl 40/20/40 split bench seat with center armrest, cupholder and storage
Seats – Front, Manual Lumbar Support, Driver Side
Seats – Rear, Vinyl 60/40 Fold-Up Bench Seat (SuperCab)
Seats – 60/40 Bench w/ Flip-Up/Fold-Down w/ 2 Outboard Head Restraints and Center Head Restraint
Medium Dark Slate Interior Environment

Optional

Seats – Front, Vinyl 40/mini-console/40
Seats – Front, Cloth 40/Mini-console/40

Packages

Standard

Power Equipment Group
SecuriLock^® Passive Anti-Theft System (PATS)
Ford Security Package (1-year included with activation)

Optional

XL Chrome Package
Heavy Service Front Suspension Package (67H)
Extra Heavy Service Suspension Package (67X)
Extra Heavy Duty Front End Suspension - 7500 GAWR (67P)
High-Capacity Trailer Tow Package
Snow Plow Prep Package
Ambulance Prep Package (Fleet only Optional on XL and XLT)
Ambulance Prep Package with EPA Special Emergency Vehicle Emissions (fleet only)
Fire/Rescue Prep Package with EPA Special Emissions (fleet only)
Payload Upgrade Package (F-550 145" Wheelbase With 7.3L Engine)
Payload Plus Upgrade Package
Payload Downgrade Package (F-450/F-550 only)
Low Deflection Spacer (F-450/F-550/F-600)
CNG/Propane Gaseous Engine Prep Package (7.3L)

Exterior Features

Appearance

Standard

Bumper, front – black painted steel with black lower air dam
Door Handles – black
Quad Dual-Beam Halogen Headlamps
Halogen Taillamps
Grille – Black bar-style
Mirrors – Manual Telescoping Trailer Tow with Power Heated Glass and Heated Spotter Mirror,Integrated Clearance Lamps/Turn Signals
LED Roof Marker Clearance Lights
Tow hooks - (2) front, black
Splash Guards/Mud Flaps – Front

Optional

Bumpers, front – chrome steel with black lower air dam
Platform Running Boards
Halogen Fog Lamps
Grille – bright chrome 2 bar
Center High-Mounted Stop Lamp (CHMSL)

Protection

Optional

360-Degree Dual Beacon LED Warning Strobes – White
360-Degree Dual Beacon LED Warning Strobes – White/Amber
Skid Plates, transfer case (4x4)

Windows & Glass

Standard

Glass - rear, solar tinted
Window – rear, fixed, solar tinted

Power

Optional

2kW Pro Power Onboard^™

Power and Handling

Power

Standard

7.3L 2V DECVT V8 Gas Engine
TorqShift^® 10-Speed Automatic Transmission with Selectable Drive Modes
Diesel Engine-Exhaust Braking (Diesel Engine)
DEF Tank Level Gauge (Diesel Engine)
Operator-Commanded Regeneration (Diesel Engine)

Optional

6.7L Power Stroke^® V8 Turbo Diesel Engine

Handling

Standard

Alternator – 250-amp (6.7L)
Alternator - Single, 190-amp (7.3L)
Dual Alternators – 332-amp (6.7 diesel engine only)
Single Battery (750 CCA 78 AH) (7.3L Gas)
Dual Battery 750 CCA, 68 AH Dual (7.3L Gas XLT & Lariat and std. on 6.7L Diesel)
Axle – Mono-beam front axle with coil spring suspension (F-350 4X4, F-450, F-550 and F-600)
Brakes – Brakes – Four-wheel Disc Brakes with Anti-Lock Brake System (ABS)
AdvanceTrac^® with RSC^® (Roll Stability Control^™) and Trailer Sway Control
Programable Engine Idle Shutdown
Stationary Elevated Idle Control (SEIC)
40 Gallon aft-axle (F-350/F-450/F-550/F-600)
Shock absorbers – Heavy Duty Gas
Stabilizer bar – front and rear
Steering – Electrohydraulic power steering
Steering damper
Manual locking hubs (4x4 models only)
Transfer Case – Electronic Shift-On-the-Fly (ESOF) 4-Wheel-Drive System (4x4 models only)
PTO Provision
Tough and Durable High-Strength Steel Frame

Optional

Dual Alternator – 410-amp (7.3L)
Dual Alternator – 350-amp (6.7L)
Dual Alternators – 410-amp total (6.7 diesel engine)
Engine block heater
26.5 Gallon mid-ship
66.5 Gallon dual diesel fuel tanks (DRW Only)
Aft-Axle Frame Extension (req. 169" or 145" wheelbase) F450/F550/F600
Integrated Trailer Brake Controller

Wheels & Tires

Standard

Wheels - 19.5" x 6" Argent Painted Steel (DRW)
225/70Rx19.5G BSW A/P
225/70Rx19.5G BSW A/S (6)

Optional

Stainless Steel Wheel Cover (F-450/F-550/F-600 DRW)
225/70Rx19.5G BSW Traction (4 traction tires on rear, 2 A/P tires on front. Optional spare is BSW A/P)
225/70Rx19.5G BSW Max Traction (4 traction tires on rear, 2 traction tires on front. Optional spare is traction.) (4x4)
225/70Rx19.5G BSW Traction (4 traction tires on rear, 2 A/P tires on front.)
Spare Tire & Wheels (Excludes carrier; Includes Hydraulic Jack, Required in RI)
Hydraulic Jack (2-ton – F-350 SRW / 4-Ton – F-350 DRW / 6-ton – F-450, F-550 & F-600)

Safety

Standard

Airbags – Driver & Passenger side
Airbags – Passenger-side deactivation switch
Safety Canopy^® System with roll-fold side-curtain airbags
Belt-Minder^®, chime and flashing warning light on instrument cluster if belts not buckled
Child tethers (Regular Cab, front passenger and all rear seating positions)
Seat Belts - color coordinated with height adjustment (front outboard seating positions only)
SOS Post Crash Alert System
Audible Lane Departure Warning
Pre-Collision Assist^® with Automatic Emergency Braking (AEB)

Optional

Seat Belts - Rear Inflatable (Crew Cab Only)
Automatic High Beams

Security

Standard

Remote keyless entry and perimeter anti-theft alarm
SecuriLock^® Anti-Theft Ignition
Autolamp (Auto On/Off Headlamps) with Rainlamp Wiper Activated Headlamps

Specifications

Vehicle Highlights

Fuel Capacity	26.5 gallons (F-350 SRW w/68D Payload Downgrade Pkg.)
	40 gallons (F-350 SRW/F-350 DRW/F-450/F-550/F-600; NA with 68D Payload Downgrade Pkg. on F-350 SRW)
	66.5 gallons (DRW - dual diesel tanks)
Drive Type	4x2
	4x4
Available Engines	6.7L Power Stroke^® V8 Turbo Diesel (optional on all models)
	7.3L PFI V8 (standard on all models)
Horsepower \| Torque	330 HP @ 2200 rpm \| 950 TQ @ 1800 rpm (6.7L Power Stroke^® Turbo Diesel)
	335 HP @ 3750 rpm \| 468 TQ @ 3750 rpm
Transmission	TorqShift^® 10-Speed SelectShift^® Automatic
Wheelbase	Regular Cab: 145.3"/169.3"/193.3"/205.3"
	SuperCab: 167.9"/191.9"
	Crew Cab: 179.7"/203.7"
Warranty	Bumper to Bumper: 3 years / 36,000 miles
	Powertrain: 5 years / 60,000 miles
	Commercial Powertrain Warranty: 5 years/100,000 miles. Fleet only for vehicles purchased with a valid Fleet I.D. Number (FIN) Code.
	Safety Restraint System: 5 years / 60,000 miles
	Corrosion (Perforation only): 5 years / Unlimited miles
	Roadside Assistance Program: 5 years / 60,000 miles

Interior Dimensions

	Regular Cab	SuperCab	Crew Cab
	4x2/4x4	4x2/4x4	4x2/4x4
Front (in)
Head room	40.8	40.8	40.8
Shoulder room	66.7	66.7	66.7
Hip room	62.5	62.5	62.5
Leg room	43.9	43.9	43.9
Rear (in)
Head room	-	40.3	40.4
Shoulder room	-	66.1	65.9
Hip room	-	62.6	62.6
Leg room	-	33.5	43.6
Volumes (cu. ft.)
Passenger – total	64.6	116	131.8
Cargo – behind first row	11.6	31.6	52.1

Exterior Dimensions

		Regular Cab	Regular Cab	Regular Cab	Regular Cab	Regular Cab	Regular Cab	Regular Cab	Regular Cab	SuperCab	SuperCab	SuperCab	SuperCab	Crew Cab	Crew Cab	Crew Cab	Crew Cab
Cab to Axle (in)		60" CA	60" CA	84" CA	84" CA	108" CA	108" CA	120" CA	120" CA	60" CA	60" CA	84" CA	84" CA	60" CA	60" CA	84" CA	84" CA
Drivetrain		4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4	4x2	4x4
Wheelbase (in)		145.3"	145.3"	169.3"	169.3"	193.3"	193.3"	205.3"	205.3"	167.9"	167.9"	191.9"	191.9"	179.8"	179.8"	203.8	203.8
Length – overall		230.7/273.0*	230.7/273.0*	254.8/287.2**	254.8/287.2**	278.8	278.8	290.7	290.7	253.3	253.3	277.4	277.4	265.2	265.2	289.2	289.2
Height – F-350 SRW (Curb Weight) (in)		78.8	81.9	-	-	-	-	-	-	79.1	82	-	-	79.2	82.1	-	-
Height – F-350 DRW (Curb Weight (in)		79	82	78.7	82.1	-	-	-	-	79.3	82.3	-	-	79.4	82.4	-	-
Height – F-450 DRW (Curb Weight) (in)		82.4	82.5	82.5	82.3	82.4	82.2	82.2	82.3	82.6	82.7	82.6	82.4	82.8	82.7	82.6	82.5
Height – F-550 DRW (Curb Weight) (in)		82.7	82.5	83.4	83.4	82.6	82.4	82.4	82.3	82.6	82.7	82.6	82.6	82.8	82.7	82.7	82.7
Height – F-600 DRW (Curb Weight) (in)		83.5	83.4	83.3	83.1	83.1	83	83.1	82.8	-	-	-	-	-	-	-	-
Track - front – F-350 SRW (in)		68.3	68.3	-	-	-	-	-	-	68.3	68.3	-	-	68.3	68.3	-	-
Track - front – F-350 DRW (in)		69.1	69.1	69.1	69.1	-	-	-	-	69.1	69.1	-	-	69.1	69.1	-	-
Track - front – F-450 DRW (in)		74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8
Track - front – F-550 DRW (in)		74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8	74.8
Track - front – F-600 DRW (in)		74.5	74.5	74.5	74.5	74.5	74.5	74.5	74.5	-	-	-	-	-	-	-	-
Track - rear – F-350 SRW (in)		68.1	68.1	-	-	-	-	-	-	68.1	68.1	-	-	68.1	68.1	-	-
Track Center Width - (Rear) – F-350 DRW (in)		71.1	71.1	71.1	71.1	71.1	-	-	-	71.1	71.1	-	-	71.1	71.1	-	-
Track Center Width - (Rear) – F-450 DRW (in)		74	74	74	74	74	74	74	74	74	74	74	74	74	74	74	74
Track Center Width - (Rear) – F-550 DRW (in)		74	74	74	74	74	74	74	74	74	74	74	74	74	74	74	74
Track Center Width - (Rear) – F-600 DRW (in)		74	74	74	74	74	74	74	74	-	-	-	-	-	-	-	-
Minimum Running Ground Clearance F-350 SRW (in)		9.3	9.5	-	-	-	-	-	-	9.6	9.9	-	-	9.7	10	-	-
Minimum Running Ground Clearance F-350 DRW (in)		9.3	9.6	9.7	10.1	-	-	-	-	9.6	8.5	-	-	9.6	9.8	-	-
Minimum Running Ground Clearance F-450 DRW (in)		10.1	9.8	10.1	9.8	10.3	10.4	10.2	10.4	10	9.6	10.1	10.2	9.8	9.9	10.2	10.3
Minimum Running Ground Clearance F-550 DRW (in)		10.1	10.1	10.1	10.2	10.6	10.4	10.6	10.4	10	10	10.5	10.2	9.8	9.9	10.2	10.2
Minimum Running Ground Clearance F-600 DRW (in)		12.2	11.9	11.7	11.5	11.7	11.4	11.7	11.3	-	-	-	-	-	-	-	-
Front (Front Bumper to C/L Front Axle) (in)		38.3	38.3	38.3	38.3	38.3	38.3	38.3	38.3	38.3	38.3	38.3	38.3	38.3	38.3	38.3	38.3
Frame Rail Width – F-350 SRW (in)		34.1	34.1	-	-	-	-	-	-	34.1	34.1	-	-	34.1	34.1	-	-
Frame Rail Width – F-350 DRW (in)		34.1	34.1	34.1	34.1	34.1	-	-	-	34.1	34.1	-	-	34.1	34.1	-	-
Frame Rail Width – F-450 DRW (in)		34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2
Frame Rail Width – F-550 DRW (in)		34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2
Frame Rail Width – F-600 DRW (in)		34.2	34.2	34.2	34.2	34.2	34.2	34.2	34.2	-	-	-	-	-	-	-	-
Rear Axle to End of Frame (in)		47.2/89.4*	47.2/89.4*	47.2/89.4*	47.2/89.4*	47.2	47.2	47.2	47.2	47.2	47.2	47.2	47.2	47.2	47.2	47.2	47.2
Base Curb Weight – F350 SRW 18" Wheels (lbs)	6.7L	-	6,620	-	-	-	-	-	-	6,652	7,119	-	-	6,865	7,185	-	-
Base Curb Weight – F350 SRW 18" Wheels (lbs)	7.3L	5,494	5,945	-	-	-	-	-	-	5,922	6,353	-	-	6,061	6,478	-	-
Base Curb Weight – F350 DRW (lbs)	6.7L	6,570	6,960	6,671	7,071	-	-	-	-	7,005	7,403	-	-	7,078	7,478	-	-
Base Curb Weight – F350 DRW (lbs)	7.3L	5,893	6,233	5,971	6,371	-	-	-	-	6,304	6,690	-	-	6,392	6,792	-	-
Base Curb Weight – F450 DRW (lbs)	7.3L	6,606	6,858	6,623	6,996	6,771	7,185	6,909	7,219	6,996	7,298	7,087	7,394	7,066	7,398	7,178	7,478
Base Curb Weight – F450 DRW (lbs)	6.7L	7,369	7,582	7,330	7,686	7,488	7,925	7,620	7,952	7,640	8,000	7,806	8,132	7,766	8,146	8,006	8,204
Base Curb Weight – F550 DRW (lbs)	7.3L	6,606	6,858	6,623	6,996	6,771	7,185	6,909	7,219	6,996	7,298	7,087	7,394	7,066	7,398	7,178	7,478
Base Curb Weight – F550 DRW (lbs)	6.7L	7,369	7,582	7,330	7,686	7,488	7,925	7,620	7,952	7,640	8,000	7,806	8,132	7,766	8,146	8,006	8,204
Base Curb Weight – F550+ DRW (lbs)	7.3L	6,661	6,920	6,726	7,083	6,899	7,231	6,934	7,330	6,987	7,359	7,144	7,471	7,147	7,459	7,230	7,586
Base Curb Weight – F550+ DRW (lbs)	6.7L	7,369	7,550	7,468	7,759	7,629	7,934	7,652	8,003	7,744	8,075	7,890	8,181	7,882	8,186	7,966	8,288
Base Curb Weight – F600 DRW (lbs)	7.3L	6,786	7,128	6,942	7,230	6,939	7,271	7,117	7,416	-	-	-	-	-	-	-	-
Base Curb Weight – F600 DRW (lbs)	6.7L	7,516	7,786	7,633	7,896	7,638	8,039	7,871	8,064	-	-	-	-	-	-	-	-
* 89.4" with optional Aft-Axle frame extension (F-450, F-550, F-600)
** 79.6" with optional Aft-Axle frame extension (F-550, F-600)

Capacities: Passengers and Fuel

	Regular Cab	SuperCab	Crew Cab
Seating capacity (maximum)	3	6	6
Mid Ship Fuel Tank Capacity F-350 SRW w/68D Payload Downgrade Pkg.	26.5 gallons	26.5 gallons	26.5 gallons
Aft-of-Axle Fuel Tank Capacity (F-350 SRW/F-350 DRW/F-450/F-550/F-600; NA with 68D Payload Downgrade Pkg. on F-350 SRW)	40 gallons	40 gallons	40 gallons
Fuel capacity DRW - dual diesel tanks (N/A on Lariat Trim)	66.5 gallons	66.5 gallons	66.5 gallons

Engine Specifications

	6.7L POWER STROKE^® V8 TURBO DIESEL	7.3L 2-VALVE PFI V8 GAS
Configuration	OHV (32-valve)	OHV (16-valve)
Fuel injection	High-Pressure Common-Rail	Sequential Electronic
Engine control system	Electronic	Electronic
Induction system	Variable Geometry Turbocharger; with charge air cooler	Specially tuned
Battery	12-volt; 750-cca/78-amp-hr	12-volt; 750-cca/78-amp-hr
Alternator	250-amp (XL)	190-amp (XL)
	350-dual amp (XLT/LARIAT)	410 dual amp (XLT/LARIAT)
Cooling system	Pressurized series flow	Pressurized series flow
Oil life monitor	Intelligent Oil Life Monitor^®	Oil Life Monitor^®
Cylinders	8	8
Cylinder head	Aluminum	Aluminum
Block material	Compacted Graphite Iron	Cast Iron
Valve operation	Push rod/rocker arms	Push rod/rocker arms
Camshaft drive	Gear	Silent chain
Bore	3.90"	4.22"
Stroke	4.25"	3.98"
Compression ratio	15.2:1	10.5:1
Horsepower/rpm	330 @ 2200	335 @ 3750
Torque lb.-ft./rpm	950 @ 1800	468 @ 3750
Recommended Fuel	Ultra-low sulfur diesel/B20	87 octane (not compatible with E85)
(1) Certified to SAE J1349.

Transmission Specifications
Transmission Type	TorqShift^® 10-speed automatic with SelectShift^® (6.7L diesel, 7.3L gas)
Case material	Aluminum
Power Takeoff	Live-drive access on driver side
	Gear ratios
	First	4.615:1
	Second	2.919:1
	Third	2.132:1
	Fourth	1.773:1
	Fifth	1.519:1
	Sixth	1.277:1
	Seventh	1:1
	Eight	0.851:1
	Ninth	0.687:1
	Tenth	0.632:1
	Reverse	-4.695:1

Chassis Specifications

FRONT SUSPENSION
Type	Twin-I-Beam (F-350 4x2)
	Solid Twin-Coil Monobeam axle (F-350 4x4, F-450/F-550/F-600)
Max. Front GAWR	7.500 lbs (F-450/F-550/F-600) *Standard on F-600, optional on F-450/F-550

Springs	Coil
Shock absorbers	Gas type
Stabilizer bar	Standard

REAR SUSPENSION
Type	Solid axle
Max. Rear GAWR	15.500 lbs (F-600)

Springs	Leaf
Shock absorbers	Gas type
Stabilizer bar	Standard

STEERING
Assist	Power Hydraulic

BRAKES
Type	4-wheel vented-disc ABS (standard)
Front (rotor diameter)	14.29" (363 mm) (F-250/F-350)
	15.39" (391 mm) (F-450/F-550/F-600)
Rear (rotor diameter)	14.29" (363 mm) (F-250/F-350)
	15.75" (400 mm) (F-450/F-550/F-600)

WHEELS
Type	Steel or aluminum
Size	17"DRW, 18" SRW (F-350); 19.5"DRW (F-450/F-550/F-600)
Number of studs	8 (F-350); 10 (F-450/F-550/F-600)
Bolt-circle diameter	6.7" (F-350 SRW)
	7.87" (F-350 DRW)
	8.86" (F-450/F-550/F-600)

Towing

Conventional Towing - Maximum available Loaded Trailer Weight Ratings
	Regular Cab	Regular Cab	Regular Cab	Regular Cab	SuperCab	SuperCab	SuperCab	Crew Cab	Crew Cab	Crew Cab
Engine with Automatic Transmission	F-350 4x2/4x4 (lbs.)	F-450 4x2/4x4 (lbs.)	F-550 4x2/4x4 (lbs.)	F-600 4x2/4x4 (lbs.)	F-350 4x2/4x4 (lbs.)	F-450 4x2/4x4 (lbs.)	F-550 4x2/4x4 (lbs.)	F-350 4x2/4x4 (lbs.)	F-450 4x2/4x4 (lbs.)	F-550 4x2/4x4 (lbs.)
7.3L Gas V8	17,500/17,500	17,500/17,500	18,500/18,500	18,500/18,500	17,500/17,500	17,500/17,500	18,500/18,500	17,500/17,500	17,500/17,500	18,500/18,500
6.7L Power Stroke Turbo Diesel	17,500/17,500	17,500/17,500	18,500/18,500	18,500/18,500	17,500/17,500	17,500/17,500	18,500/18,500	17,500/17,500	17,500/17,500	18,500/18,500

5th Wheel / Gooseneck Towing - Maximum available Loaded Trailer Weight Ratings
	Regular Cab	Regular Cab	Regular Cab	Regular Cab	SuperCab	SuperCab	SuperCab	Crew Cab	Crew Cab	Crew Cab
Engine with Automatic Transmission	F-350 4x2/4x4 (lbs.)	F-450 4x2/4x4 (lbs.)	F-550 4x2/4x4 (lbs.)	F-600 4x2/4x4 (lbs.)	F-350 4x2/4x4 (lbs.)	F-450 4x2/4x4 (lbs.)	F-550 4x2/4x4 (lbs.)	F-350 4x2/4x4 (lbs.)	F-450 4x2/4x4 (lbs.)	F-550 4x2/4x4 (lbs.)
7.3L Gas V8	20,400/20,000	22,100/21,900	22,100/21,900	23,400/23,100	20,000/19,600	21,700/21,400	21,700/21,400	19,900/19,400	21,600/21,300	21,600/21,300
6.7L Power Stroke Turbo Diesel	26,600/26,300	30,300/30,100	34,300/34,200	34,700/34,400	N/A/25,800	29,700/29,700	33,700/33,600	26,100/25,700	29,900/29,500	33,800/33,500
Conventional Towing - Maximum available Loaded Trailer Weight Rating

Payload

			Regular Cab	Regular Cab	Regular Cab	Regular Cab	SuperCab	SuperCab	Crew Cab	Crew Cab
CONFIGURATION	ENGINE*	MAX GVWR (LBS.)	145.0" WB 60" CA	169.0" WB 84" CA	193.0" WB 108" CA	205.0 WB 120" CA	167.5" WB 60" CA	205.0 WB 120" CA	167.5" WB 60" CA	203.4" WB 84" CA
F-350 SRW 4x2	7.3 V8 Gas	10,500	4,950	-	-	-	-	-	-	-
F-350 SRW 4x2	7.3 V8 Gas	10,900	-	-	-	-	4,910	-	-	-
F-350 SRW 4x2	7.3 V8 Gas	11,000	-	-	-	-	-	-	4,870	-
F-350 SRW 4x2	6.7L V8 Diesel	11,500	-	-	-	-	-	-	4,560	-
F-350 SRW 4x4	7.3 V8 Gas	10,900	4,890	-	-	-	-	-	-	-
F-350 SRW 4x4	7.3 V8 Gas	11,300	-	-	-	-	4,880	-	-	-
F-350 SRW 4x4	7.3 V8 Gas	11,400	-	-		-	-	-	4,850	-
F-350 SRW 4x4	6.7L V8 Diesel	11,500	4,810	-	-	-	4,300	-	4,240	-
F-350 DRW 4x2	7.3 V8 Gas	14,000	8,040	7,960	-	-	7,630	-	7,540	-
F-350 DRW 4x4	7.3 V8 Gas	14,000	7,700	7,560	-	-	7,240	-	7,140	-
F-450 DRW 4x2	6.7L V8 Diesel	15,000	-	-	-	-	-	7,110	-	-
F-450 DRW 4x2	7.3 V8 Gas	15,000	8,320	8,310	8,160	8,020	7,930	-	7,860	7,750
F-450 DRW 4x2	6.7L V8 Diesel	16,000	-	-	-	-	-	8,110	-	-
F-450 DRW 4x2	7.3 V8 Gas	16,000	9,320	9,310	9,160	9,020	8,930	-	8,860	8,750
F-450 DRW 4x2	6.7L V8 Diesel	16,500	-	-	-	-	-	8.610	-	-
F-450 DRW 4x2	7.3 V8 Gas	16,500	9,820	9,810	9,660	9,520	9,430	-	9,360	9,250
F-450 DRW 4x4	7.3 V8 Gas	15,000	8,070	7,930	7,740	7,700	7,620	7,530	7,520	7,440
F-450 DRW 4x4	7.3 V8 Gas	16,000	9,070	8,930	8,740	8,700	8,620	8,530	8,520	8,440
F-450 DRW 4x4	7.3 V8 Gas	16,500	9,570	9,430	9,240	9,200	9,120	9,030	9,020	8,940
F-550 DRW 4x2	6.7L V8 Diesel	17,500	-	-	-	-	-	9,610	-	-
F-550 DRW 4x2	7.3 V8 Gas	17,500	10,820	10,810	10,660	10,520	10,430	-	10,360	10,250
F-550 DRW 4x2	6.7L V8 Diesel	18,000	-	-	-	-	-	10,110	-	-
F-550 DRW 4x2	7.3 V8 Gas	18,000	11,320	11,310	11,160	11,020	10,930	-	10,860	10,750
F-550 DRW 4x2	7.3 V8 Gas	19,000	12,270	-	-	-	-	-	-	-
F-550 DRW 4x2	6.7L V8 Diesel	19,500	12,050	-	-	-	-	11,530	-	-
F-550 DRW 4x2	7.3 V8 Gas	19,500	-	12,700	12,530	12,490	12,440	-	12,280	12,190
F-550 DRW 4x4	7.3 V8 Gas	17,500	10,570	10,430	10,240	10,200	10,120	10,030	10,020	9,940
F-550 DRW 4x4	7.3 V8 Gas	18,000	11,070	10,930	10,740	10,700	10,620	10,530	10,520	10,440
F-550 DRW 4x4	7.3 V8 Gas	19,000	12,010	-	-	-	-	-	-	-
F-550 DRW 4x4	6.7L V8 Diesel	19,500	11,870	-	-	-	-	-	-	-
F-550 DRW 4x4	7.3 V8 Gas	19,500	-	12,340	12,190	12,090	12,060	11,950	11,960	11,830
F-600 DRW 4x2	7.3 V8 Gas	22,000	15,140	14,980	14,990	14,810	-	-	-	-
F-600 DRW 4x4	7.3 V8 Gas	22,000	14,800	14,690	14,650	14,500	-	-	-	-
*All engines not listed, as these specifications only cover configurations with maximum payloads.

SUVs & Cars

It's Buy-Now Season

Trucks & Vans

It's Buy-Now Season

Electric & Hybrid

Performance Vehicles

Motorsports, Parts & Clubs

Commercial Vehicles

Ford Pro offers the tools, software and services to keep your business on track and crews on the road.

Future Vehicles

Moving ahead to move you.

Recent Searches

Clear

Suggested Searches

Search History

Recent Searches

Suggested Searches

Search History

2025 Chassis Cab F-550® XL

Key Features

Ford Pro™ Vehicle Integration System 2.0

7.3L 2V DECVT V8 Gas Engine

Pre-Collision Assist® With Automatic Emergency Braking (AEB)

Interior Features

Climate

Standard

Optional

Comfort and Convenience

Standard

Optional

Entertainment Systems

Standard

Seating

Standard

Optional

Packages

Packages

Standard

Optional

Exterior Features

Appearance

Standard

Optional

Protection

Optional

Windows & Glass

Standard

Power

Optional

Power and Handling

Power

Standard

Optional

Handling

Standard

Optional

Wheels & Tires

Standard

Optional

Safety

Safety

Standard

Optional

Security

Standard

Specifications

Vehicle Highlights

Interior Dimensions

Exterior Dimensions

Capacities: Passengers and Fuel

Engine Specifications

Chassis Specifications

Towing

Payload

2025 Chassis Cab F-550^® XL

Ford Pro^™ Vehicle Integration System 2.0

Pre-Collision Assist^® With Automatic Emergency Braking (AEB)
