2025 Transit® Passenger Van XLT

Build & Price

Key Features

The 12-inch touchscreen inside of a 2025 Ford Transit® van

SYNC^® 4 with 12-inch Touchscreen

Features include cloud-based connectivity with enhanced voice recognition, AM/FM stereo, Bluetooth connectivity and Electronic Air Temperature Control. Add optional features like SiriusXM^® with 360L, HD Radio^™, and Connected Navigation with Adaptive Cruise Control and Intersection Assist.

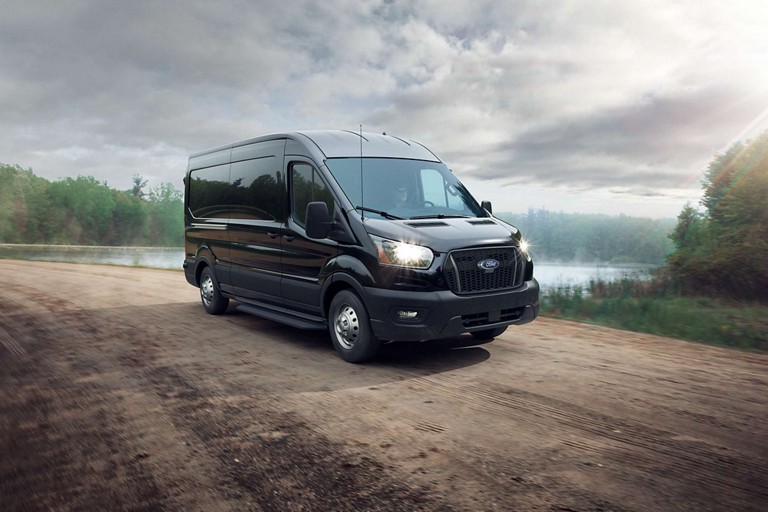

Intelligent All-Wheel Drive

The available Intelligent All-Wheel Drive System is not only designed to enhance handling and maximize traction. It was integrated into the vehicle's design to ensure it didn't raise the load floor or seat height, making it as easy to enter and exit as our standard model. Great news for drivers who are in and out of their vehicles a lot during the workday.

Interior of 2025 Ford Transit® with airbags deployed

Safety Canopy^® System with Side-Curtain Airbags

Transit^® Cargo Van comes standard with driver and passenger front and side airbags, plus a Safety Canopy^® System with a front-row, side-curtain airbag. * The side-curtain airbags extend into the second row.

*Always wear your safety belt and secure children in the rear seat.

Exterior Features

Appearance

Standard

Audio, Antenna - Fender Mounted
Front Bumper – Body Colored. Includes Front Fog Lamps
Body Side Moldings – Carbon Black
50/50 Hinged Rear Door, 180-Degree Opening (Std. Low and Medium Roof Cargo)
Sliding Passenger-Side Door
Front License Plate Bracket
Auto High-Beam Headlamps
Wiper Activated Headlamps
Roof Marker Lamps (DRW)
Roof Marker Lamp Delete (SRW)
Front Fog Lamps - Included in Side Sensing System and 360-Degree Camera with Split View
Rear Recovery Tow Hook
Mirrors - Short-Arm, Power Adjusting, Power-Folding Heated With Turn Signals
Honeycomb Mesh Grille with Chrome Surround
Halogen Headlamps with Autolamp
Short Arm, Power Adjusting, Power Folding, Heated with Turn Signals
High Resolution Digital Camera

Optional

50/50 Hinged Rear Door, 253-Degree Opening (Std. High Roof Cargo Van)
Wheel Well Liners - Black (Front Only)
Mirrors – Long-Arm — Power-Adjusting, Manual-Folding Heated With Turn Signals
Running Boards - Covers the B-C Pillar Passenger-Side
Chrome High-Intensity Discharge (HID) Headlamps

Protection

Standard

Windows-All-Around Fixed

Optional

Keyless-Entry Keypad
Key - 2 Additional (4 Total) with Key Fobs
Intelligent Access with Push-Button Start

Windows & Glass

Standard

Windows - Tinted Glass
Windows - Rear Window

Optional

Privacy Glass. Includes Rear-Window Defroster

Interior Features

Climate

Standard

Air Conditioning
Front/Rear Aux A/C and Heater (Driver Controlled)

Optional

Auxiliary Heater/AC Prep Package without Rear Controls

Comfort and Convenience

Standard

Horn - Single-Note Electric
Inside Rearview Mirror
Headliner – Cloth, Full Length
Large Center Console
Post-Collision Braking
Pre-Collision Assist With Automatic Emergency Braking (AEB)
Blind Spot Information System (BLIS^®) with Cross-Traffic Alert and Trailer Coverage
Lane-Keeping System
Floor Covering, Carpet - Front & Rear
Glove Box (Locking)
Instrumentation – Tachometer, Fuel Level and Coolant Temperature
Interior Lighting
Lighting, Front Dome Lamp with Map Lights and Theater-Dimming
A-Pillar Assist Handles
Two Auxiliary 12-Volt Powerpoints
Powerpoint, 12V - One is Located in the Instrument Panel and One in Center Console
USB Ports – 5 Amps
Sun Visors - with Illuminated Vanity Mirror (Driver and Passenger)
Automatic Rain-Sensing Windshield Wipers
Reverse Sensing System. Included with Lane Keeping System with Blind Spot Information System (BLIS^®)
Side Sensing System. Requires Lane Keeping System with Blind Spot Information System (BLIS^®)
B-Pillar Assist Handle (Passenger-Side) - Handle is Standard on Low Roof Cargo Van
Forward Collision Warning
Rearview Mirror (When Equipped with Rear Glass)
Headlamp Courtesy Delay
Ford Pro^™ Telematics
Full Rear Compartment Lighting
Lighting, Rear Dome Lamp with Map Lights and Theater Dimming

Optional

Adaptive Cruise Control
Floor Covering, Carpet - Front
Floor Covering, Vinyl, Front & Rear
Instrumentation - Vehicle Maintenance Monitor - Includes Engine Hour Meter
High-Capacity Upfitter Switches
360-Degree Camera with Split View and Front Washer
Passenger Van 148" W/B (LR, MR, HR) GVWR 9,250 - 10,360 lbs. SRW
Front Overhead Shelf
Heavy Duty Tray Style Floor Mats (Front)
Reverse Brake Assist. Requires Lane Keeping System with Blind Spot Information System (BLIS^®). Includes Reverse Sensing System and 360-Degree Camera with Split View and Front Washer
Digital Rearview Mirror
All-Weather Floor Mats (Front). Available with Vinyl Floor Covering

Entertainment Systems

Standard

SYNC 4 with 12" Display and Connected Navigation

Optional

SYNC 4 with SiriusXM^® with 360L, HD Radio^™ and 12" Display with Connected Navigation
SYNC 4 with SiriusXM^® with 360L, HD Radio^™, and 12" Display. Built-In Navigation with Traffic Sign Recognition, Intelligent Speed Assist, Intelligent Adaptive Cruise Control (iACC) and Intersection Assist
SYNC 4 with SiriusXM^® with 360L, HD Radio^™, Navigation and 12" Display. Built-In Navigation with Traffic Sign Recognition and Intelligent Speed Assist
8 Speakers (4 Front/4 Rear)

Seating

Standard

Driver and Front-Passenger Manual Reclining Bucket Seats with Adjustable Headrest (Includes Driver-Side and Passenger-Side Inboard Armrest)
Rear-Seat(s) Recline and Inboard Armrest - Note: Last row of Seats Do Not Recline
15-Passenger Seating. 1st Row: 2 Seats, 2nd Row: 3 Seats, 3rd Row: 3 Seats, 4th Row: 3 Seats, 5th Row: 4 Seats. Standard with Extended Length Passenger Van
12-Passenger Seating. 1st Row: 2 Seats, 2nd Row: 3 Seats, 3rd Row: 3 Seats, 4th Row: 4 Seats. Standard with Long Length Passenger Van
Dark Palazzo Gray Cloth, 2-Way Manual Driver and 2-Way Manual Passenger Seats

Optional

15-Passenger Seating. 1st Row: 2 Seats, 2nd Row: 3 Seats, 3rd Row: 3 Seats, 4th Row: 3 Seats, 5th Row: 4 Seats. Optional with Long Length Passenger Van

Packages

Power and Handling

Handling

Standard

Steering – Power Rack and Pinion
Electric Power-Assisted Steering (EPAS)
Steering Wheel, - Tilt & Telescopic Column Polyurethane 4-Spoke Wheel
Parking Brake - Mechanical (9,950lb GVWR DRW Configurations Only)
Suspension, Front - Independent MacPherson-Strut, Stabilizer Bar
Suspension, Rear - Leaf Springs, Heavy-Duty Gas Shock Absorbers
AdvanceTrac^® With Roll Stability Control^™ (RSC^®)
Side-Wind Stabilization
Hill Start Assist
Parking Brake – Electric (SRW Configurations Only)
Cruise Control. Includes Adjustable Speed Limiting Device (ASLD)

Optional

Enhanced Active Park Assist
Heavy-Duty Front Axle
Trailer Brake Controller (TBC)
Intelligent All-Wheel Drive

Power

Standard

Alternator – 250 amp (3.5L PFDi V6 and 3.5L EcoBoost^® V6 Engines)
Auxiliary Fuel Port
3.5L PFDi V6
10-Speed Automatic Transmission
Fuel Tank – Capless Fuel Fill, 25 Gallons (Midship)
Single AGM Battery (70 amp-hr)

Optional

Auxiliary Fuse Panel with High Spec Interface Connector
3.5L EcoBoost^® V6
Engine Block Heater (400W Rating)
Extended-Range Fuel Tank - Capless Fuel Fill, 31 Gallons (Midship)
Dual AGM Batteries (70 amp-hr each)

Wheels & Tires

Standard

Tires, 195/75R16C 107/105 R BSW All-Season (RWD with Standard Front Axle Configurations Only)
Tires 205/75R16C 113/111 BSW All-Season (AWD, 11,000 GVWR or RWD with Heavy-Duty Front Axle Configurations Only)
Tires, 235/65R16 BSW All-Season - (SRW)
16-Inch Steel Wheel With Full Silver Wheel Cover (SRW)
16-Inch Silver Steel Wheel With Exposed Lug Nuts (SRW)
16-Inch Heavy-Duty Silver Steel Wheel with Silver Hubcaps and Exposed Lug Nuts (DRW)
Wheels, Full-Size Spare Tire and Wheel with 3-Ton Jack

Optional

16-Inch Heavy-Duty Forged Aluminum Wheel (DRW)
Spare Tire and Wheel Delete
16-Inch Silver Aluminum Alloy Wheel (SRW)
16-Inch Black Aluminum Alloy Wheel (SRW)
16-Inch Sparkle Silver Alloy Wheel (SRW)
16-Inch Matte Black Alloy Wheel (SRW)

Safety

Specifications

Exterior Dimensions

2025 Transit Cargo Van
Length (Regular, Long, Long-EL)	Regular	Regular	Long	Long	Long	Long-EL
Roof (Low, Medium, High)	Low	Medium	Low	Medium	High	High
Passenger Capacity	2	2	2	2	2	2
Rows of Seating	1	1	1	1	1	1
	[in.]	[in.]	[in.]	[in.]	[in.]	[in.]
Wheelbase	130	130	148	148	148	148
Overall Length	219.9	217.8	237.6	235.5	235.5	263.9
Height	82.2	99.1	82.9	101.3	109.6	110.4
Width - Excluding Mirrors (SRW/DRW)	81.3	81.3	81.3	81.3	81.3	81.3/83.7
Width - Including Mirrors	97.4	97.4	97.4	97.4	97.4	97.4
Width - Mirrors Folded	83.2	83.2	83.2	83.2	83.2	83.2/83.7
Front Track (SRW/DRW)	68.2	68.2	68.2	68.2	68.2	68.2/68.5
Rear Track (SRW/DRW)	68.6	68.6	68.6	68.6	68.6	68.6/65.7
Front Overhang	40.3	40.3	40.3	40.3	40.3	40.3
Rear Overhang	49.7	47.6	49.7	47.6	47.6	76
Load Height (Curb)	28.9	28.9	28.7	28.7	28.7	28
Side Cargo Door Opening Height	49.6	63	49.6	63	63	63
Side Cargo Door Opening Width - Hinged	51.2	51.2	51.2	51.2	51.2	51.2
Side Cargo Door Opening Width - Sliding	51.2	51.2	51.2	51.2	51.2	51.2
Rear Cargo Door Opening Height	49.5	64.9	49.5	64.9	74.3	74.3
Rear Cargo Door Opening Width	61.7	61.7	61.7	61.7	61.7	61.7
2025 MY Transit Passenger Van
Length (Long, Long-EL)			Long	Long	Long	Long-EL
Roof (Low, Medium, High)			Low	Medium	High	High
			[in.]	[in.]	[in.]	[in.]
Wheelbase			148	148	148	148
Length			237.6	235.5	235.5	263.9
Height			82.4	99.2	108.6	107.7
Width - Excluding Mirrors (SRW/DRW)			81.3	81.3	81.3	81.3
Width - Including Mirrors			97.4	97.4	97.4	97.4
Width - Mirrors Folded			83.2	83.2	83.2	83.2
Front Track			68.2	68.2	68.2	68.2
Rear Track			68.6	68.6	68.6	68.6
Front Overhang			40.3	40.3	40.3	40.3
Rear Overhang			49.7	47.6	47.6	76
Load Height (Curb)			28.8	28.8	28.8	27.8
Rear Cargo Door Opening Height			46.9	62.8	72.2	72.2
Rear Cargo Door Opening Width			59.8	59.8	59.8	59.8

Interior Dimensions

2025 Transit Cargo Van
Length (Regular, Long, Long-EL)	Regular	Regular	Long	Long	Long	Long-EL
Roof (Low, Medium, High)	Low	Medium	Low	Medium	High	High
Passenger Capacity	2	2	2	2	2	2
Rows of Seating	1	1	1	1	1	1
	[in.]	[in.]	[in.]	[in.]	[in.]	[in.]
Head Room - First Row	40.8	52	40.8	52	56.6	56.6
Maximum Leg Room - First Row	41.3	41.3	41.3	41.3	41.3	41.3
Leg Room - First Row	39.7	39.7	39.7	39.7	39.7	39.7
Hip Room - First Row	60.7	60.7	60.7	60.7	60.7	60.7
Shoulder Room - First Row	67.9	67.9	67.9	67.9	67.9	67.9
Cargo Length Front (at Floor)	126	126	143.7	143.7	143.7	172.2
Cargo Length Front (at Belt)	115.9	115.9	133.6	133.6	133.6	162
Cargo Width Between Wheelhouse (SRW/DRW)	54.8	54.8	54.8	54.8	54.8	54.8 / 45.4
Cargo Height Maximum	56.9	72	56.9	72	81.5	81.5
2025 Transit Passenger Van
Length (Long, Long-EL)	Long	Long	Long	Long-EL
Roof (Low, Medium, High)	Low	Medium	High	High
	[in.]	[in.]	[in.]	[in.]
Head Room - First Row	40.8	52	56.6	56.6
Head Room - Second Row (where applicable)	41.1	55.8	65.2	65.2
Head Room - Third Row (where applicable)	40.6	55.8	65.2	65.2
Head Room - Fourth Row (where applicable)	38.7	55.8	65.2	65.2
Head Room - Fifth Row (where applicable)	38.1	52.6	61.3	61.3
Leg Room - First Row (Max.)	41.3	41.3	41.3	41.3
Leg Room - Second Row (where applicable)	33.7	33.7	33.7	33.7
Leg Room - Third Row (where applicable)	35.6	35.6	35.6	35.6
Leg Room - Fourth Row (where applicable)	35.6	35.6	35.6	35.6
Leg Room - Fifth Row (where applicable)	35.6	35.6	35.6	35.6
Hip Room - First Row	60.7	60.7	60.7	60.7
Hip Room - Second Row (where applicable)	69.6	69.6	69.6	69.6
Hip Room - Third Row (where applicable)	67.3	67.3	67.3	67.3
Hip Room - Fourth Row (where applicable)	68	68	68	68
Hip Room - Fifth Row (where applicable)	68	68	68	68
Shoulder Room - First Row	67.9	67.9	67.9	67.9
Shoulder Room - Second Row (where applicable)	71.4	71.4	71.4	71.4
Shoulder Room - Third Row (where applicable)	67	67	67	67
Shoulder Room - Fourth Row (where applicable)	67.8	67.8	67.8	67.8
Shoulder Room - Fifth Row (where applicable)	67.8	67.8	67.8	67.8
Cargo Length Front (at Floor)	141.7	141.7	141.7	170.2
Cargo Length Front (at Belt)	132.8	132.8	132.8	161.3
Cargo Width Between Wheelhouse (SRW/DRW)	53.7	53.7	53.7	53.7
Cargo Height Maximum	52.8	67.6	77	77

Capacities: Seating / Cargo Volumes

2025 Transit Cargo Van
Length (Regular, Long, Long-EL)	Regular	Regular	Long	Long	Long	Long-EL
Roof (Low, Medium, High)	Low	Medium	Low	Medium	High	High
Seating	2	2	2	2	2	2
	[cu. ft.]	[cu. ft.]	[cu. ft.]	[cu. ft.]	[cu. ft.]	[cu. ft.]
Cargo Volume Behind First Row	246,7	315,2	277,7	357,1	404,3	487,3
Maximum Cargo Volume	280,9	358,7	311,9	400,5	453,4	536,4

2025 Transit Passenger Van
Length (Long, Long-EL)	Long	Long	Long	Long-EL
Roof (Low, Medium, High)	Low	Medium	High	High
Seating	2, 12, 15	2, 12, 15	2, 12, 15	2, 12, 15
	Cu. ft.	Cu. ft.	Cu. ft.	Cu. ft.
Cargo Volume Behind First Row	223.5	303.1	349.6	425.4
Cargo Volume Behind Second Row	150	206.8	240.1	313.1
Cargo Volume Behind Third Row	91.5	133.9	157	230
Cargo Volume Behind Fourth Row	48.9	72.8	85.8	184
Cargo Volume Behind Fifth Row	-	-	-	100.5

Engine Specifications

Engine type	3.5L PFDI V6	3.5L EcoBoost^® V6
Displacement (cu. In../ ml)	213/3,497	213/3,497
Horsepower (SAE net @ RPM)	275 @ 6,250	310 @ 5,000
Torque (lb.-ft. @ RPM)	260 @ 4,000	400 @ 2,500
Compression ratio	11.8.1	10.0:1
Bore x stroke (in.)	3.64 x 3.41	3.64 x 3.41
Valvetrain	DOHC, 4 valve per cylinder	DOHC, 4 valve per cylinder
Fuel delivery	Port Fuel Direct Injection (PFDI) dual system	Direct gasoline injection, dual turbochargers
Transmission type	10-speed automatic Selectshift^® with overdrive	10-speed automatic Selectshift^® with overdrive
Engine block material	Aluminum	Aluminum
Cylinder head material	Aluminum	Aluminum

Chassis Specifications

Front suspension	Independent MacPherson-strut
Rear suspension	Leaf springs
Shock absorbers	Heavy-duty gas
Brakes	4-wheel anti-lock disc brakes
Steering	Electric Power Steering (EPS)

Maximum Payload Capabilities

Cargo Van
Transit Level	Roof	Length	Wheelbase (in.)	Engine	RWD/AWD	GVWR (lbs.)	Max Payload (lbs.)
T-150	Low	Regular	130	3.5L PFDI V6	RWD	8,670	3,668
				3.5L EcoBoost V6	RWD	8,670	3,603
				3.5L PFDI V6	AWD	8,670	3,472
				3.5L EcoBoost V6	AWD	8,670	3,405
		Long	148	3.5L PFDI V6	RWD	8,670	3,566
				3.5L EcoBoost V6	RWD	8,670	3,499
				3.5L PFDI V6	AWD	8,670	3,359
				3.5L EcoBoost V6	AWD	8,670	3,295
	Medium	Regular	130	3.5L PFDI V6	RWD	8,670	3,538
				3.5L EcoBoost V6	RWD	8,670	3,468
				3.5L PFDI V6	AWD	8,670	3,342
				3.5L EcoBoost V6	AWD	8,670	3,269
		Long	148	3.5L PFDI V6	RWD	8,670	3,418
				3.5L EcoBoost V6	RWD	8,670	3,352
				3.5L PFDI V6	AWD	8,670	3,211
				3.5L EcoBoost V6	AWD	8,670	3,148
T-250	Low	Regular	130	3.5L PFDI V6	RWD	9,070	4,068
				3.5L EcoBoost V6	RWD	9,070	4,003
				3.5L PFDI V6	AWD	9,070	3,872
				3.5L EcoBoost V6	AWD	9,070	3,805
		Long	148	3.5L PFDI V6	RWD	9,070	3,966
				3.5L EcoBoost V6	RWD	9,070	3,898
				3.5L PFDI V6	AWD	9,070	3,759
				3.5L EcoBoost V6	AWD	9,070	3,694
	Medium	Regular	130	3.5L PFDI V6	RWD	9,070	3,938
				3.5L EcoBoost V6	RWD	9,070	3,868
				3.5L PFDI V6	AWD	9,070	3,742
				3.5L EcoBoost V6	AWD	9,070	3,670
		Long	148	3.5L PFDI V6	RWD	9,070	3,818
				3.5L EcoBoost V6	RWD	9,070	3,752
				3.5L PFDI V6	AWD	9,070	3,611
				3.5L EcoBoost V6	AWD	9,070	3,548
	High	Long	148	3.5L PFDI V6	RWD	9,070	3,723
				3.5L EcoBoost V6	RWD	9,070	3,657
				3.5L PFDI V6	AWD	9,070	3,516
				3.5L EcoBoost V6	AWD	9,070	3,453
		Long-EL	148	3.5L PFDI V6	RWD	9,070	3,520
				3.5L EcoBoost V6	RWD	9,070	3,455
				3.5L PFDI V6	AWD	9,070	3,313
				3.5L EcoBoost V6	AWD	9,070	3,251
T-350	Low	Regular	130	3.5L PFDI V6	RWD	9,500	4,498
				3.5L EcoBoost V6	RWD	9,500	4,433
				3.5L PFDI V6	AWD	9,500	4,302
				3.5L EcoBoost V6	AWD	9,500	4,235
		Long	148	3.5L PFDI V6	RWD	9,500	4,396
				3.5L EcoBoost V6	RWD	9,500	4,346
				3.5L PFDI V6	AWD	9,500	4,189
				3.5L EcoBoost V6	AWD	9,500	4,133
	Medium	Regular	130	3.5L PFDI V6	RWD	9,500	4,368
				3.5L EcoBoost V6	RWD	9,500	4,298
				3.5L PFDI V6	AWD	9,500	4,172
				3.5L EcoBoost V6	AWD	9,500	4,100
		Long	148	3.5L PFDI V6	RWD	9,500	4,248
				3.5L EcoBoost V6	RWD	9,500	4,191
				3.5L PFDI V6	AWD	9,500	4,041
				3.5L EcoBoost V6	AWD	9,500	3,978
	High	Long	148	3.5L PFDI V6	RWD	9,500	4,153
				3.5L EcoBoost V6	RWD	9,500	4,102
				3.5L PFDI V6	AWD	9,500	3,946
				3.5L EcoBoost V6	AWD	9,500	3,889
		Long-EL	148	3.5L PFDI V6	RWD	9,500	3,950
				3.5L EcoBoost V6	RWD	9,500	3,885
				3.5L PFDI V6	AWD	9,500	3,743
				3.5L EcoBoost V6	AWD	9,500	3,681
T-350HD SRW	Low	Long	148	3.5L PFDI V6	RWD	9,950	4,846
				3.5L EcoBoost V6	RWD	9,950	4,796
				3.5L PFDI V6	AWD	9,950	4,639
				3.5L EcoBoost V6	AWD	9,950	4,583
	Medium	Long	148	3.5L PFDI V6	RWD	9,950	4,698
				3.5L EcoBoost V6	RWD	9,950	4,641
				3.5L PFDI V6	AWD	9,950	4,491
				3.5L EcoBoost V6	AWD	9,950	4,428
	High	Long	148	3.5L PFDI V6	RWD	9,950	4,603
				3.5L EcoBoost V6	RWD	9,950	4,552
				3.5L PFDI V6	AWD	9,950	4,396
				3.5L EcoBoost V6	AWD	9,950	4,339
	High	Long-EL	148	3.5L PFDI V6	RWD	9,950	4,359
				3.5L EcoBoost V6	RWD	9,950	4,233
				3.5L PFDI V6	AWD	9,950	4,129
				3.5L EcoBoost V6	AWD	9,950	4,005
T-350HD DRW	High	Long-EL	148	3.5L PFDI V6	RWD	9,950	4,191
				3.5L EcoBoost V6	RWD	9,950	4,124
				3.5L PFDI V6	AWD	9,950	3,960
				3.5L EcoBoost V6	AWD	9,950	3,897
				3.5L PFDI V6	RWD	10,360	4,601
				3.5L EcoBoost V6	RWD	10,360	4,534
				3.5L EcoBoost V6	AWD	10,360	4,307
				3.5L EcoBoost V6	RWD	11,000	5,114
				3.5L EcoBoost V6	AWD	11,000	4,887
Passenger Van
Transit Level	Roof	Length	Wheelbase (in.)	Engine	Seating	RWD/AWD	GVWR (lbs.)
T-350	Low	Long	148	3.5L PFDI V6	12	RWD	9,250
				3.5L EcoBoost V6	12	RWD	9,250
				3.5L PFDI V6	12	AWD	9,250
				3.5L EcoBoost V6	12	AWD	9,250
				3.5L PFDI V6	15	AWD	9,550
				3.5L EcoBoost V6	15	AWD	9,550
				3.5L PFDI V6	15	RWD	9,400
				3.5L EcoBoost V6	15	RWD	9,400
	Medium	Long	148	3.5L PFDI V6	12	RWD	9,250
				3.5L EcoBoost V6	12	RWD	9,250
				3.5L PFDI V6	12	AWD	9,250
				3.5L EcoBoost V6	12	AWD	9,250
				3.5L PFDI V6	15	AWD	9,550
				3.5L EcoBoost V6	15	AWD	9,550
				3.5L PFDI V6	15	RWD	9,400
				3.5L EcoBoost V6	15	RWD	9,400
	High	Long	148	3.5L PFDI V6	12	RWD	9,250
				3.5L EcoBoost V6	12	RWD	9,250
				3.5L PFDI V6	12	AWD	9,250
				3.5L EcoBoost V6	12	AWD	9,250
				3.5L PFDI V6	15	AWD	9,550
				3.5L EcoBoost V6	15	AWD	9,550
				3.5L PFDI V6	15	RWD	9,400
				3.5L EcoBoost V6	15	RWD	9,400
T-350HD DRW	High	Long-EL	148	3.5L PFDI V6	15	RWD	10,360
				3.5L EcoBoost V6	15	RWD	10,360
				3.5L EcoBoost V6	15	AWD	10,360

Maximum Towing Capabilities – Conventional Towing

Engine
3.5L PFDI V6	Cargo Van	130	3.73 / 4.10	10,800 / 12,000	5,300 / 6,400	5,100 / 6,200
		148			5,100 / 6,200	4,900 / 6,000
	Passenger Van		4.1	11,200
		148			4,500	4,100
3.5L EcoBoost V6	Cargo Van	130	3.73	12,600	6,900	6,800
		148			6,800	6,600
	Passenger Van	148	3.73	11,200	4,400	4,200
Maximum towing capacities for for properly equipped base vehicles with required equipment. Do not exceed trailer weight of 5,000 lbs. when towing with bumper only.

Vehicle Highlights

Fuel Capacity (Standard)	25 gallons (midship)
Fuel Capacity (Optional)	31 gallons (midship)
Drive Type (Standard)	RWD
Drive Type (Optional)	AWD
Standard Engine	3.5L PDFi V6
Horsepower	275 HP @ 6,250 RPM
Torque	260 lbs- ft @ 4,000 RPM
Available Engine	3.5L EcoBoost^® V6
Horsepower	310 HP @ 5,000 RPM
Torque	400 lbs-ft @ 2,500 RPM
Transmission	10-speed automatic Selectshift^® with overdrive
Wheelbase	130"
	148"
Roof Height	Low
	Medium
	High
Length	Regular
	Long
	Long-EL
Maximum Seating Capacity	2 Cargo Van, 15 Passenger Van
Maximum GVWR	11,000 lbs.
Warranty	Bumper to Bumper: 3 years / 36,000 miles
Gas Engine	Powertrain: 5 years / 60,000 miles
	Safety Restraint System: 5 years / 60,000 miles
	Corrosion (Perforation Only): 5 years / Unlimited miles
	Roadside Assistance Program: 5 years / 60,000 miles

Build & Price
Search Inventory
Request Quote

SUVs & Cars

Capable, convenient, and versatile.

Trucks & Vans

Hauling, towing, and off-roading.

Electric & Hybrid

Performance Vehicles

Motorsports, Parts & Clubs

Commercial Vehicles

Ford Pro offers the tools, software and services to keep your business on track and crews on the road.

Future Vehicles

Moving ahead to move you.

Recent Searches

Clear

Suggested Searches

Search History

Recent Searches

Suggested Searches

Search History

2025 Transit® Passenger Van XLT

Key Features

SYNC® 4 with 12-inch Touchscreen

Intelligent All-Wheel Drive

Safety Canopy® System with Side-Curtain Airbags

Exterior Features

Appearance

Standard

Optional

Protection

Standard

Optional

Windows & Glass

Standard

Optional

Interior Features

Climate

Standard

Optional

Comfort and Convenience

Standard

Optional

Entertainment Systems

Standard

Optional

Seating

Standard

Optional

Packages

Packages

Standard

Optional

Power and Handling

Handling

Standard

Optional

Power

Standard

Optional

Wheels & Tires

Standard

Optional

Safety

Safety

Standard

Security

Standard

Optional

Specifications

Exterior Dimensions

Interior Dimensions

Capacities: Seating / Cargo Volumes

Engine Specifications

Chassis Specifications

Maximum Payload Capabilities

Maximum Towing Capabilities – Conventional Towing

Vehicle Highlights

Build & Price

Search Inventory

Request Quote

SYNC^® 4 with 12-inch Touchscreen

Safety Canopy^® System with Side-Curtain Airbags
