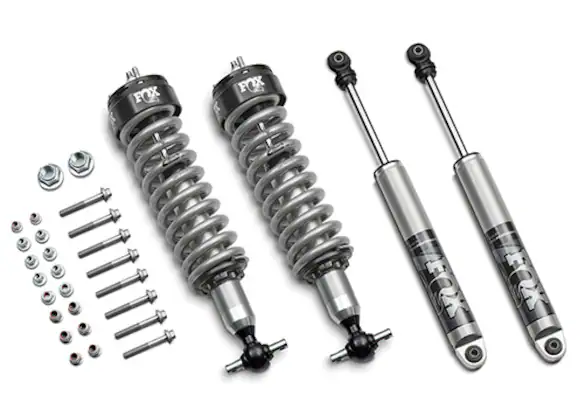

2019-2023 RANGER FOX "TUNED BY FORD PERFORMANCE" OFF-ROAD SUSPENSION LEVELING KIT (Repl. M-18000-R)
SKU: M18000RA
About This Item
Product Details
- Fits 2019-2023 Ranger 4WD (North American models only)
- Does not fit 2021-2023 Ranger Tremor Package
- M-18000-RA replaces M-18000-R - Kit is updated with improved installation hardware
- Shocks feature precision impact extruded aluminum bodies that increase cooling capacity and are rust resistant

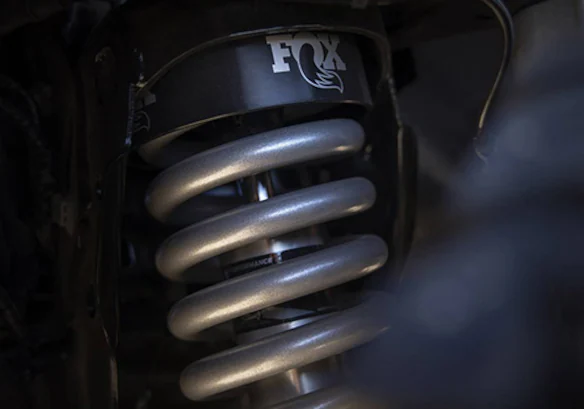

- Front coil-overs feature top quality racing coils selected to deliver the optimal spring rate
- Levels truck front-to-rear
- Improves front approach angle: 34.8 deg. vs. 28.7 deg. stock
- Improves breakover angle: 23.8 deg. vs. 21.5 deg stock
- Vehicle-specific upper front mounts include a composite bushing that isolates noise and vibration
- Locking spring preload rings allow easy front ride height and preload adjustments (Note: Changing preload/ride height from original Ford Performance settings is not recommended/voids warranty)
- Provides a comfortable on-road ride and predictable off-road handling in even the toughest conditions
- Easy bolt-on installation with no other modifications required
| Body | 2.0" impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time |
|---|---|
| Body Plating | Hard-anodized for a durable finish |
| Reservoir | Internal IFP mono-tube reservoir design separates shock oil from the high-pressure nitrogen |
| Components | Black-anodized, CNC-machined 6061-T6 billet aluminum |
| Shaft | 5/8" hard chrome plated heat-treated alloy steel |
| Piston | Race-developed high-flow piston design |
| Valving | Ford Performance specific valving to maximize performance |
| Seals | Redundant sealing pack system main seal, wiper seal, scraper seal |
| Oil | JM92 Advanced Suspension Fluid for improved performance at variable temperatures |
| Bushings | Quiet nitrile rubber allows for increased suspension articulation |
Technical Specifications
Details:
Country of Origin: United States
Emission Type: Not Emissions Related
Warranty: Available
UPC: 756122014035
Catalog: FPP
Instructions:
2019-2023 RANGER FOX "TUNED BY FORD PERFORMANCE" OFF-ROAD SUSPENSION LEVELING KIT (Repl. M-18000-R): Instruction Guide
Fits These Vehicles
- Ford Ranger 2019-2023
- Lariat
- XL
- XLT
