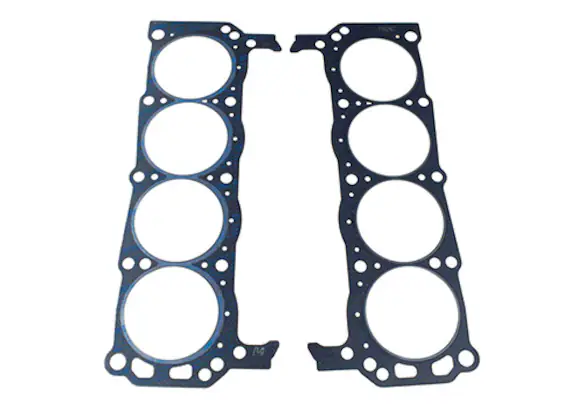

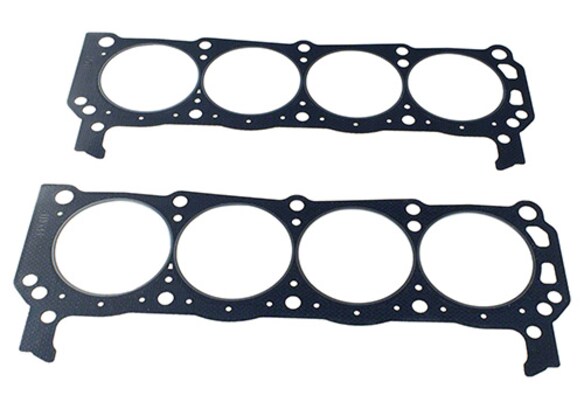

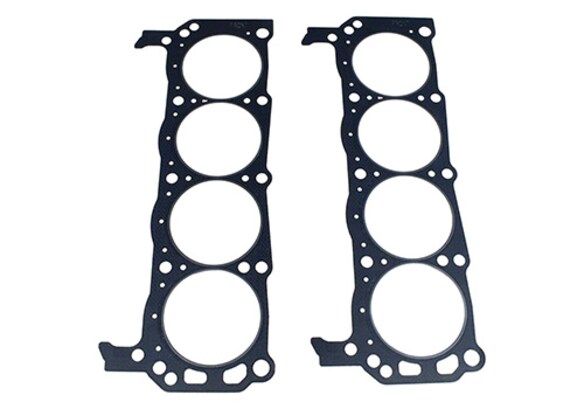

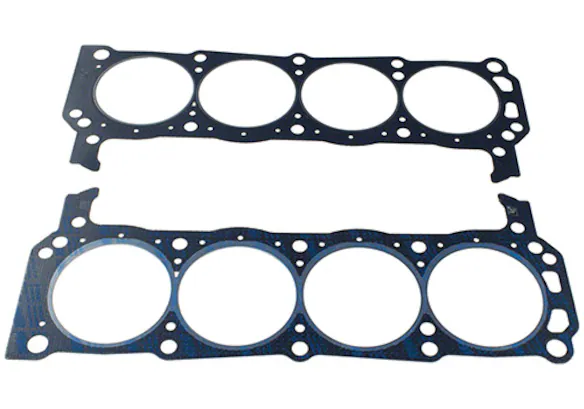

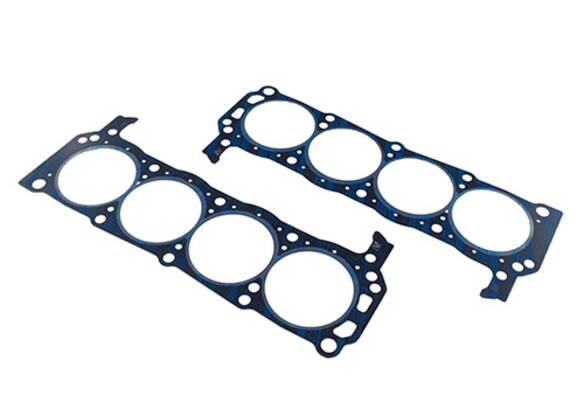

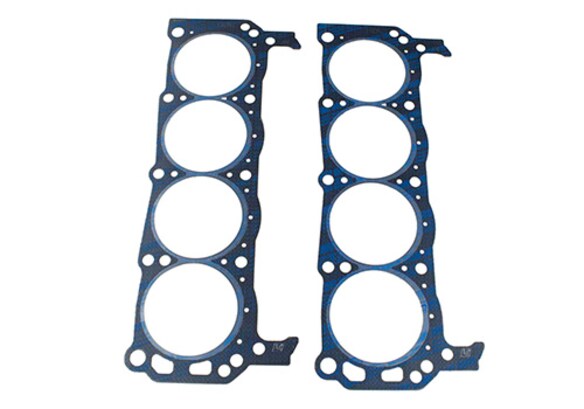

302/351 HEAD GASKET SET

SKU: M6051C51

Shipping: Ships by Nov. 24
Pickup: Free at Dealer by Nov. 26

About This Item

Product Details

  • Fits: Pushrod 302 and 351 Ford high performance engines
  • Bore (in):4.100 in.
  • Bore (mm):104.140mm
  • Gasket Material:Composite
  • Compressed Thickness (in):0.047 in.
  • Compressed Volume (cc):10.169cc

    OTHER CYLINDER HEAD GASKETS (SOLD IN PAIRS)
    PART
    NUMBER
    CYLINDER BORE APPLICATION BORE DIAMETER GASKET DIAMETER COMPRESSED THICKNESS COMPRESSED VOLUME NOTES

    M-6051-A302**

    (1)

    289/302/351W Production-Type Cast Iron and Aluminum Heads 4.00" 4.100" 0.042" 9.1cc 4.00" standard bore "competition" gasket for cast iron or aluminum cylinder heads on 302 and 351W production blocks. Features solid metallic core with wire encased combustion chamber seal for applications. Surfaces are Teflon coated.

    M-6051-C51**

    (1)

    302/351  4.00" 4.100" 0.047" 10.169cc Fits: Pushrod 302 and 351 Ford high performance engines

    M-6051-S331*

    (1)

    302/351 4.00" 4.100" 0.040" 8.8cc Pre-flattened steel wire combustion ring. Exhaust side is straight to accommodate FPP block water passages.

    M-6051-CP331*

    (1)

    302/351 4.00" 4.100" 0.040" 8.8cc Pre-flattened copper wire combustion ring. Exhaust side is straight to accommodate FPP block water passages.

    M-6051-B341*

    (1)

    Big Bore 351 Ford Performance Blocks 4.125" 4.160" 0.040" 9.1cc 4.125" overbore "competition" gasket. Same as gasket (M-6051-D331) except designed for Ford Performance blocks with larger 4.125" overbore. Bore flange valve pockets have been added to unshroud intake and exhaust valves. Set includes unique right- and left-hand gaskets!

    M-6051-R351*

    (1)

    302/351 Ford Performance Up to 4.125" 4.160" 0.040" 9.0cc For use on M-6010-R351/ R352/ R451/ R452/ BOSS302/ B302BB/ BOSS35195/ BOSS35192/ BOSS351BB.
    M-6051-A427*
    All "FE" V-8 Up to 4.230" 4.400" 0.040" 9.7cc Race-quality gasket with steel wire combustion ring and stainless steel armor.
    M-6051-A441*
    429/460 Wedge 4.360" Std. 4.500" 0.0425" 11.2cc Race-quality "competition" gasket. Features solid metal core and wire-encased combustion chamber seal.
    M-6051-B460*
    429/460 Wedge Up to 4.625" 4.670" 0.038" 10.7cc Competition gasket with round water openings to match M-6010-A460 engine blocks.
    NOTES: (1)Several different water hole patterns have been used on 302 and 351W Ford Performance cylinder blocks and heads since their introduction. Engine assemblers should lay the head gasket on the block and the cylinder head (with front of gasket toward the front of the engine) to make sure there is a path for coolant flow from the block into the head. In some cases, holes may have to be drilled in the block or head, or punched in the gasket.


Technical Specifications

Details:

  • Country of Origin: United States

  • Emission Type: Replacement Parts

  • Warranty: Not Available

  • UPC: 756122235393

  • Catalog: FPP
