302/351 HEAD GASKET SET
SKU: M6051CP331
About This Item
Product Details

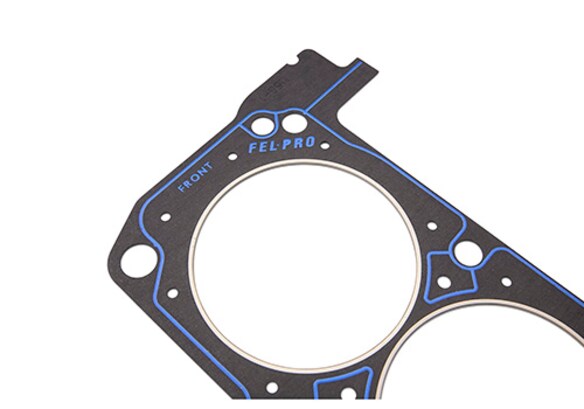

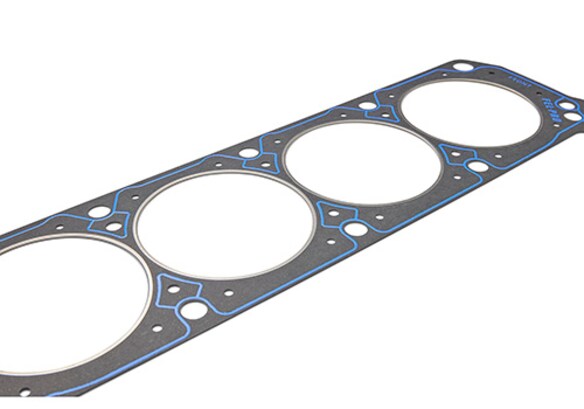

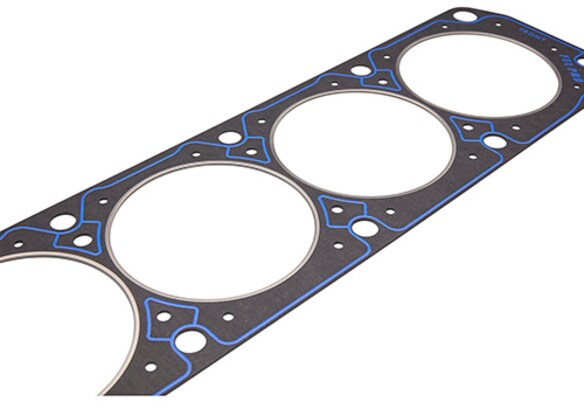

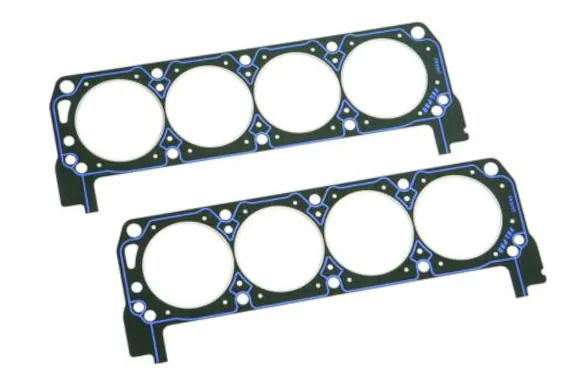

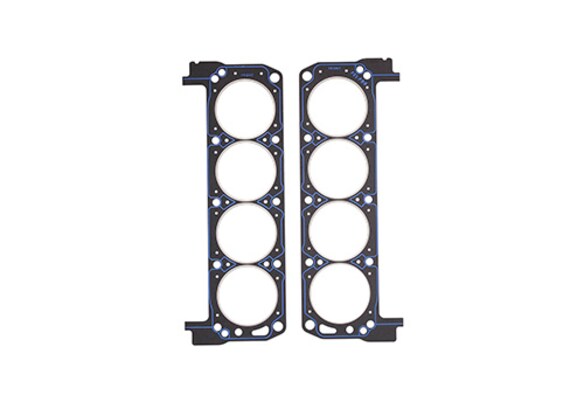

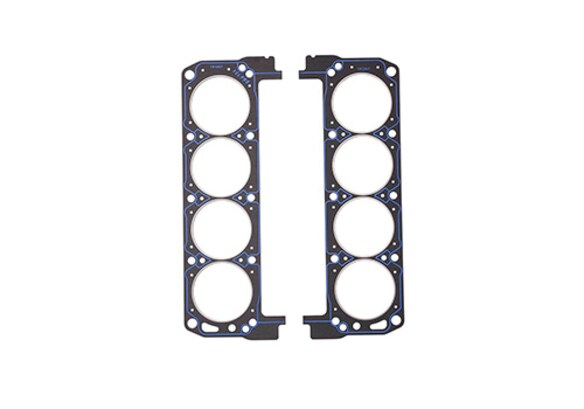

- CYLINDER HEAD GASKETS (SOLD IN PAIRS)
| PART NUMBER | CYLINDER BORE APPLICATION | BORE DIAMETER | GASKET DIAMETER | COMPRESSED THICKNESS | COMPRESSED VOLUME | NOTES |
| (1) | 289/302/351W Production-Type Cast Iron and Aluminum Heads | 4.00" | 4.100" | 0.042" | 9.1cc | 4.00" standard bore "competition" gasket for cast iron or aluminum cylinder heads on 302 and 351W production blocks. Features solid metallic core with wire encased combustion chamber seal for applications. Surfaces are Teflon coated. |
| (1) | 302/351 | 4.00" | 4.100" | 0.040" | 8.8cc | 4.00" standard bore expanded graphite gasket for high performance applications. Part of M-6051-A50 5.0L gasket kit described on page 62. Requires torque-to-yield cylinder head bolts. |
| (1) | 302/351 | 4.00" | 4.100" | 0.040" | 8.8cc | Pre-flattened steel wire combustion ring. Exhaust side is straight to accommodate FPP block water passages. |
| (1) | 302/351 | 4.00" | 4.100" | 0.040" | 8.8cc | Pre-flattened copper wire combustion ring. Exhaust side is straight to accommodate FPP block water passages. |
| (1) | Big Bore 351 Ford Performance Blocks | 4.125" | 4.160" | 0.040" | 9.1cc | 4.125" overbore "competition" gasket. Same as gasket (M-6051-D331) except designed for Ford Performance blocks with larger 4.125" overbore. Bore flange valve pockets have been added to unshroud intake and exhaust valves. Set includes unique right- and left-hand gaskets! |
| (1) | 302/351 Ford Performance | Up to 4.125" | 4.160" | 0.040" | 9.0cc | For use on M-6010-R351/ R352/ R451/ R452/ BOSS302/ B302BB/ BOSS35195/ BOSS35192/ BOSS351BB. |
| M-6051-A427* | All "FE" V-8 | Up to 4.230" | 4.400" | 0.040" | 9.7cc | Race-quality gasket with steel wire combustion ring and stainless steel armor. |
| M-6051-A441* | 429/460 Wedge | 4.360" Std. | 4.500" | 0.0425" | 11.2cc | Race-quality "competition" gasket. Features solid metal core and wire-encased combustion chamber seal. |
| M-6051-B460* | 429/460 Wedge | Up to 4.625" | 4.670" | 0.038" | 10.7cc | Competition gasket with round water openings to match M-6010-A460 engine blocks. |
Technical Specifications
Details:
Country of Origin: United States
Emission Type: Competition Only
Warranty: Not Available
UPC: 756122087732
Catalog: FPP
