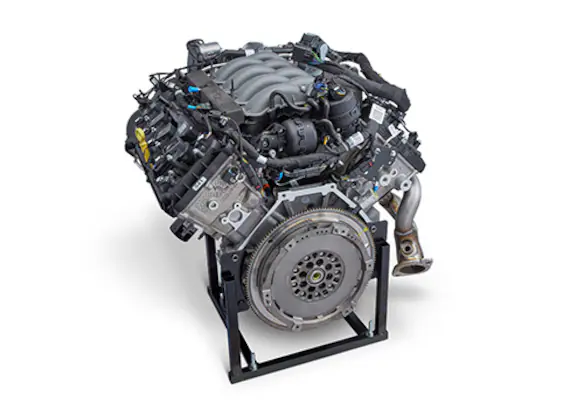

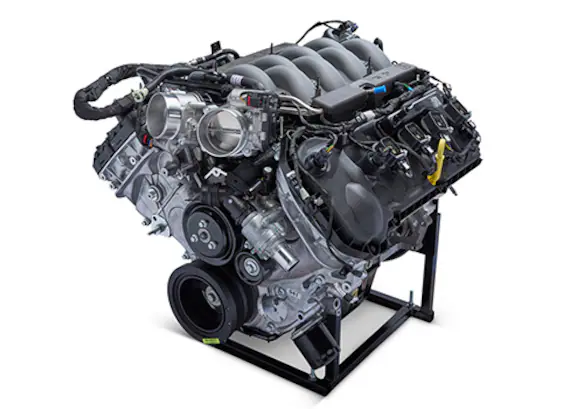

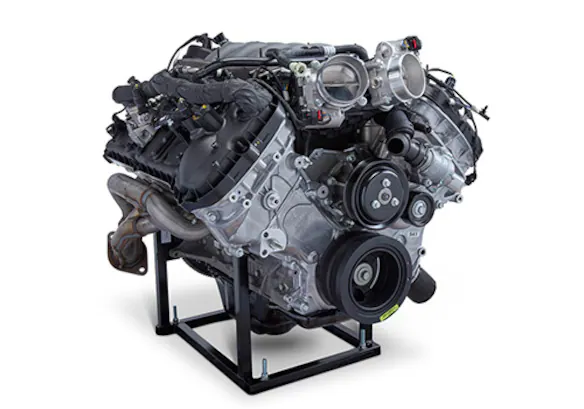

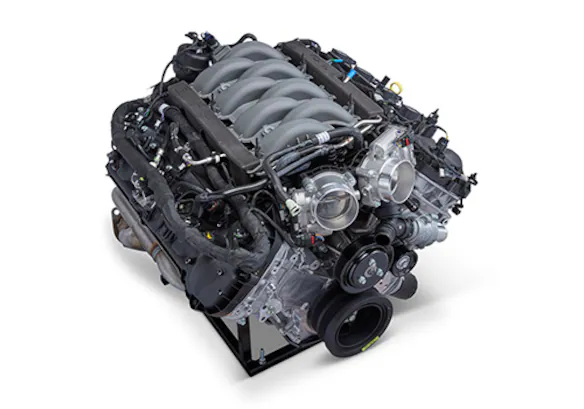

5.0L GEN 4 MUSTANG CRATE ENGINE W/ FLYWHEEL

SKU: M6007M50D

Shipping: Ships by Dec. 24
Pickup: Free at Dealer by Dec. 26

About This Item

Product Details

Ford Performance Parts is pleased to announce the latest 5.0L Coyote all-aluminum crate engine from the 2024 Mustang GT.  This modern 5.0L 32-valve DOHC V-8 uses advanced features such as direct and port fuel injection, twin independent variable camshaft timing (Ti-VCT), high-flow cylinder heads, dual throttle bodies, and a heightened compression ratio to deliver 480 horsepower and 415 lb.-ft. of torque (with premium fuel).

The lightweight plasma transferred wire arc spray aluminum cylinder block features cross-bolted main bearing caps and thick main bearing bulkheads for bottom-end strength, and optimized oil drainback and windage control to improve high-rpm performance.
  • 480 Horsepower @ 7,150 rpm
  • 415 lb.-ft. of Torque @ 4,900 rpm
  • 12.0:1 Compression ratio
  • Bore 93 mm x Stroke 92.7 mm
  • Hypereutectic aluminum pistons
  • Sintered steel connecting rods as used on BOSS 302 Mustang
  • Forged steel crankshaft
  • Aluminum block which features plasma transferred wire arc spray weld liner coating
  • Longer, 12 mm head bolts for higher clamp load
  • 9.5 qt capacity steel oil pan
  • Tuned composite intake manifold provides efficient air delivery and weight savings
  • Twin 80 mm single bore "drive by wire" electronic throttle bodies with variable runner control
  • High-flow aluminum cylinder heads, dual overhead camshaft (DOHC), four valves per cylinder, variable intake and exhaust camshaft timing
  • Includes engine harness and dual mass flywheel. For engine equipped with automatic flex plate, see M-6007-M50DAUTO
  • Engine mount bosses and bell housing mount pattern common to 5.0L modular engines
  • Mustang GT 409 stainless steel tubular exhaust manifold on the RIGHT SIDE ONLY
  • Vehicle harness and PCM not included
  • Use Ford Performance M-6017-M50D Control Pack which includes wiring, PCM and installation kit, designed for project car installation
  • Does not include alternator, for alternator kit see M-8600-M50BALT or M-8600-M50ALTA
  • 5.0L Coyote air conditioning kit available, see M-8600-M50AC
  • 5.0L Mustang motor mount kit available, see M-6038-M50
  • 5.0L Mustang engine cover kit available, see M-9680-M50D
  • Photo and specs may vary
  • Engine weight: 453 lbs. without front accessory drive components
***Note: driver side exhaust flange utilizes 5.2L pattern***

Technical Specifications

Details:

  • Country of Origin: Canada

  • Emission Type: Replacement Parts

  • Warranty: Available

  • UPC: 756122019399

  • Catalog: FPP
