7.3L 2024 SUPER DUTY CRATE ENGINE

SKU: M600773B

$8,900.00

 to redeem up to
Error IconA triangle shape with a exclamation punctuation mark inside to signal a warning or error
Select vehicle to check fit:No Vehicle selected
Shipping: Ships by Apr 7
Pickup: Free at Dealer by Apr. 9
Add to Cart

About This Item

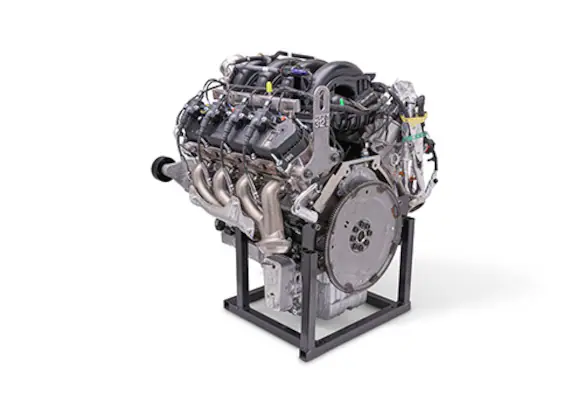

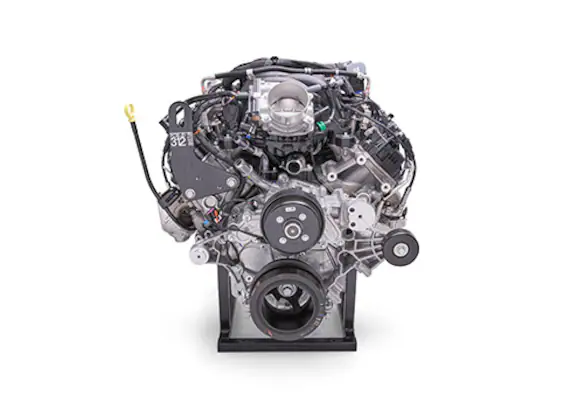

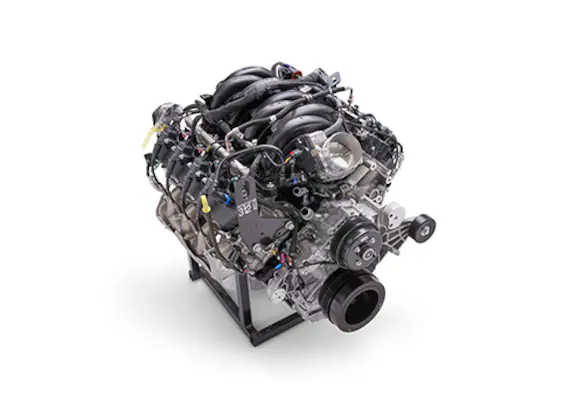

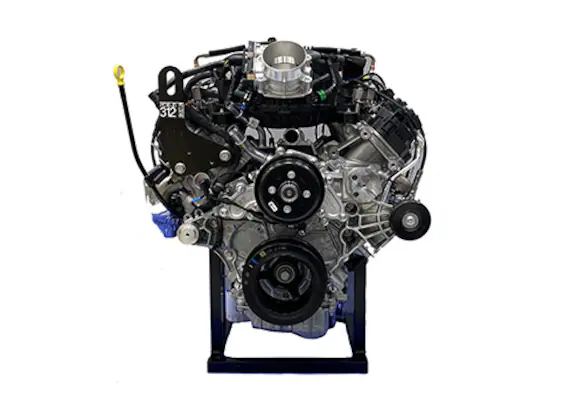

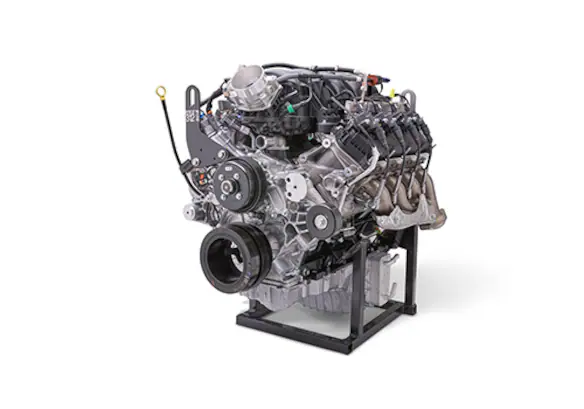

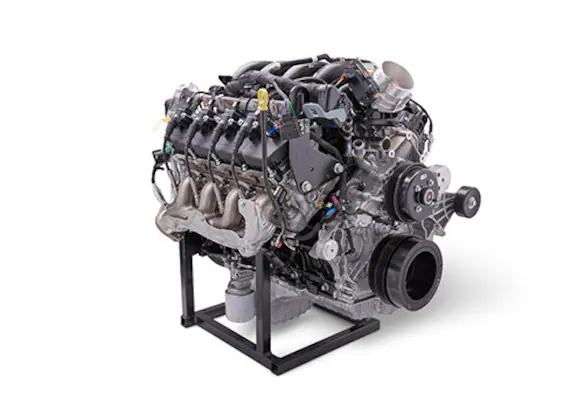

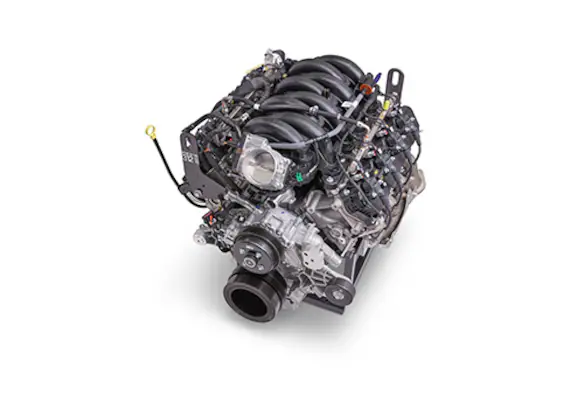

The 7.3L V8 Ford gasoline crate engine from the 2024 F250 Super Duty features:

  • 7.3L displacement
  • Bore 107.2 mm x stroke 101.0 mm
  • Cast iron block
  • Aluminum cylinder heads
  • Intake valve diameter 55.13 mm
  • Exhaust valve diameter 42.53 mm
  • Lift (intake/exhaust) 13.67 mm / 15.26 mm
  • Cam-in-block OHV design w/ variable cam timing
  • Forged steel crankshaft
  • Cast Aluminum pistons
  • 430 HP at 5,500 rpm
  • 485 lb.-ft. of torque at 4,000 rpm
  • 10.5:1 compression
  • Port fuel injection
  • Firing order: 1-5-4-8-6-3-7-2

The engine assembly includes:
  • Composite Intake manifold and 87 mm throttle body
  • Left and Right exhaust manifolds
  • 8 quart aluminum oil pan/cooler
  • Ignition coils and wires
  • Production flex plate
  • M-6038-73 shipping and storage cradle
  • Factory lift brackets
  • Bellhousing bolt pattern same as 4.6/5.4 and 5.0 Coyote
  • Engine weight: 580 lbs.

For a 7.3L starter see M-11000-SD73 For FEAD kit see M-8600-SD73  For A/C add-on kit see M-8600-SD73AC

For control pack information, please contact the Ford Performance Parts Techline.
