CLUTCH KIT

SKU: M7560T46

Shipping: Ships by Dec. 6
Pickup: Free at Dealer by Dec. 8

About This Item

Product Details

    CLUTCHES
    PART NUMBER DESCRIPTION ENGINE DIAMETER TECHNICAL INFORMATION
    M-7550-A302N
    (1)(2)(3)     		Disc V-8 10.5" HD organic lining. Component of M-7560-A302N/C302N kits.
    M-7550-X302

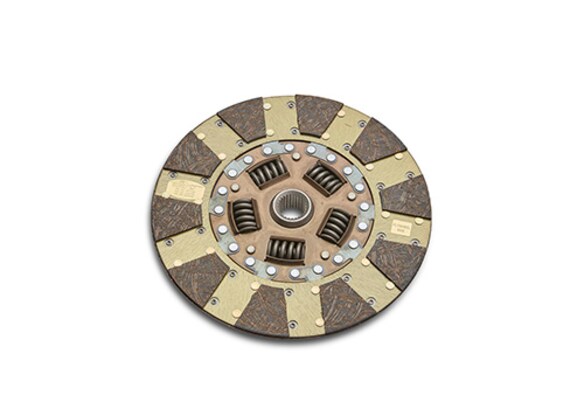

    (1)(2)(3)     		Disc V-8 10.5" HD disc with carbon/copper lining on flywheel side and carbon lining on pressure plate side.
    M-7550-T302
    (1)3     		Disc V-8 10.5" HD disc with carbon/copper lining on flywheel side and carbon lining on pressure plate side. Designed for 26 spline shaft on M-7003-R58C, and M-7003-R58H transmissions. Will work with M-7563-A302N/B302/C302N/D302 pressure plates.
    M-7563-A302N

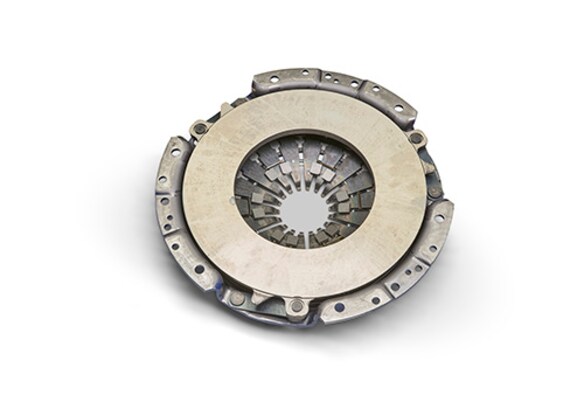

    (1)(3)(4)     		Pressure Plate V-8 10.5" HD diaphragm type with approx. 40% more capacity than stock Mustang unit. Nodular iron plate.
    M-7563-B302
    (1)(3)(4)     		Pressure Plate V-8 10.5" HD diaphragm type with centrifugal assist. Has approx. 25% more capacity than stock Mustang unit. Cast iron plate.
    M-7563-C302N
    (1)(3)(4)     		Pressure Plate V-8 10.5" HD “King Cobra” diaphragm type. Same capacity a M-7563-A302N above but stronger cover and revised internal geometry reduce clutch edal effort by 10%. Nodular iron plate.
    M-7560-A302N
    (1)(2)(3)(4)     		Mustang HD Kit V-8 10.5" Consists of M-7550-A302N disc, M-7563-A302N pressure plate and D9ZZ-7548-A throwout bearing.
    M-7560-C302N
    (1)(2)(3)(4)     		Mustang HD "King Cobra" Kit V-8 10.5" Consists of M-7550-A302N disc, M-7563-C302N pressure plate and D9ZZ-7548-A throwout bearing.
    M-7560-T46

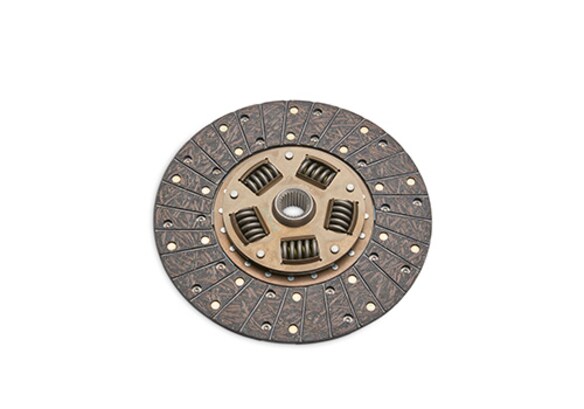

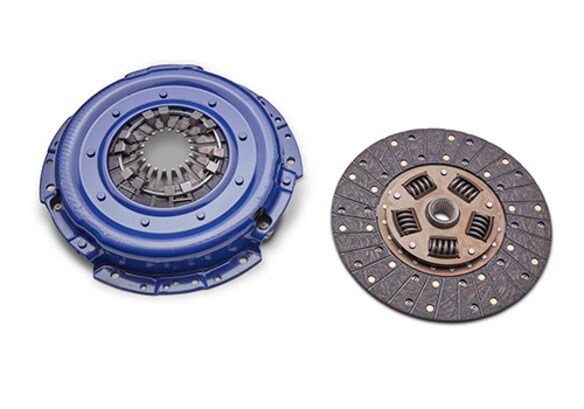

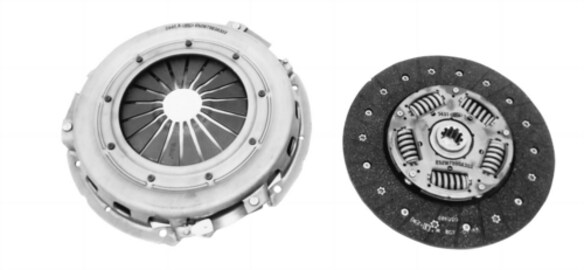

    (1)     		11" Clutch Kit 4.6L 11" Kit contains 11” clutch disc with 26 spline hub and pressure plate. Clutch disc with carbon/copper lining on flywheel side and carbon lining on pressure plate side. Centrifugal assist design pressure plate with 25% more torque capacity then production Cobra. Used when installing M-7003-TKX68 and M-7003-TKX81 transmissions into 1996-04 4.6L Mustangs with production 11” flywheel or Ford Racing flywheels M-6375-F46A or M-6375-G46A.
    M-7060-C46
    (1)(2)     		11" Clutch
    Upgrade Kit     		4.6L DOHC 11" This kit increases clutch capacity by 10% on 1996-98 Cobra 4V vehicles. It consists of the production 1999 Cobra 4V flywheel, 11" clutch/pressure plate assembly and attaching bolts/dowel pins to replace the 10.5" clutch assembly in the 1996-98 Cobra 4V vehicles.
    M-7060-A54
    (1)     		2007-08 SVT
    Mustang Clutch Kit     		5.4L 215mm Kit contains 26 spline dual disc clutch, pressure plate, pressure plate attaching bolts and flywheel. Original equipment on 2007-08 SVT Mustang.
    M-7560-D46
    (1)(2)     		11" Clutch Kit V-8 11" This kit increases clutch capacity of the 1996-98 Mustang Cobra 4.6L DOHC 4V by 10% (requires flywheel M-6375-G46 or equivalent) and increases clutch disc burst speed 10% over 1999-01 Cobra. Kit contains 2003 Cobra 11" pressure plate and 11" clutch disc.
    NOTES: 1 Clutches have NO warranty! 2 All clutch discs have 1.0625"-10 spline hub. 3 Fits all 1986-01 Mustang GT, 1993-98 Cobra with T-5 or T45 Transmissions. 2001-04 Mustang GT with 3650 transmission and 1999-03 Cobra uses an 11" clutch. OK to mix and match Ford Racing clutch discs and pressure plates but do NOT install a FRPP pressure plate with a stock disc or vice-versa as disengagement problems may occur. Installation of 10.5" clutch assemblies on 1979-85 vehicles equipped with 10" clutch requires new flywheel (see page 116). Metric fasteners and dowel pins must be used with 10.5" clutches. 4 Requires metric pressure plate bolts N602549-S51M and alignment dowel pins D1FZ-6397-B. Ford Racing kit M-6397-A302 (see page 116).

Technical Specifications

Details:

  • Country of Origin: United States

  • Emission Type: Not Emissions Related

  • Warranty: Not Available

  • UPC: 756122073490

  • Catalog: FPP

Instructions:
