COYOTE CAST IRON RACE BLOCK

SKU: M6010M50X

$5,300.00

 to redeem up to
Shipping: Ships by Dec. 24
Pickup: Free at Dealer by Dec. 26

About This Item

Product Details

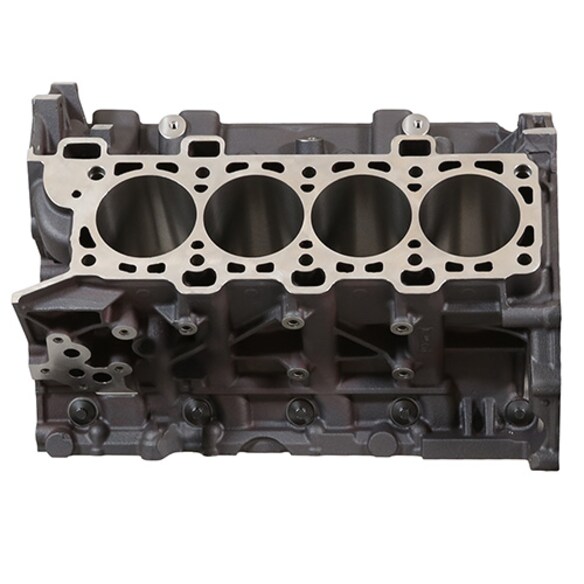

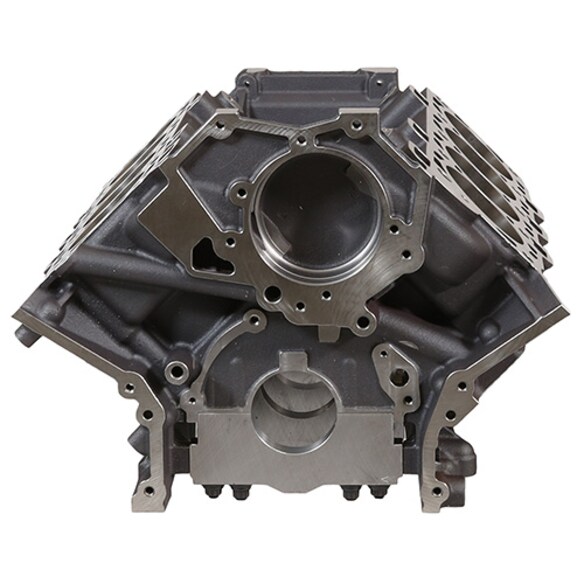

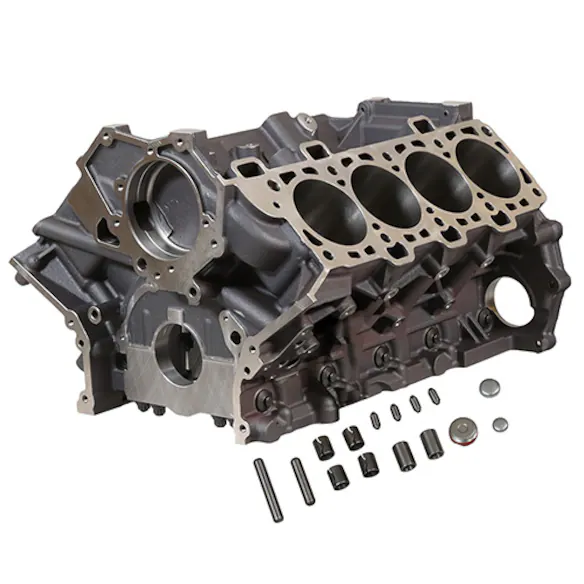

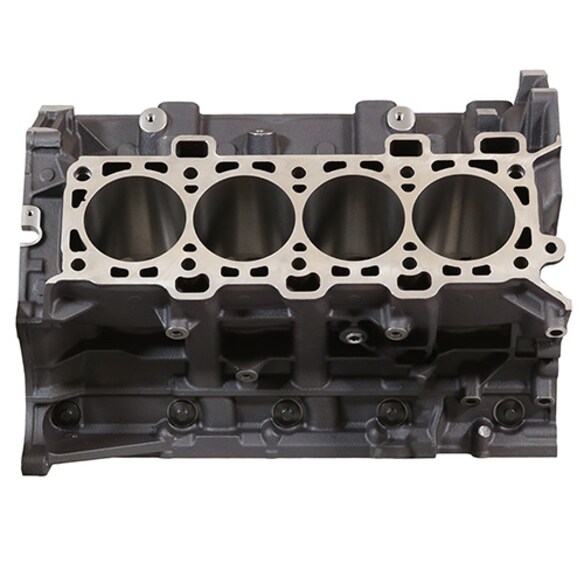

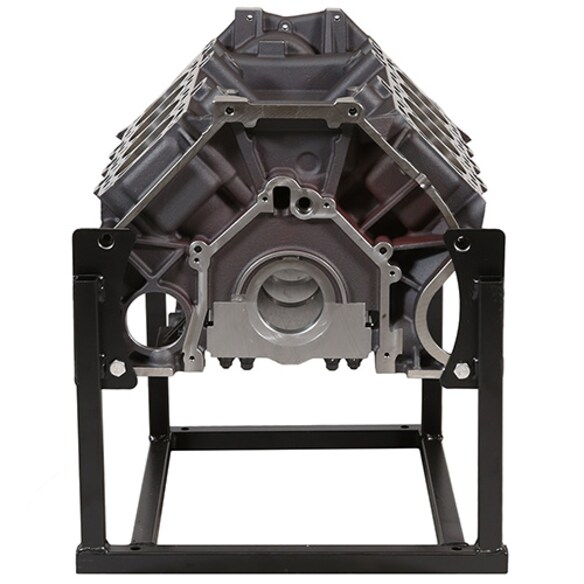

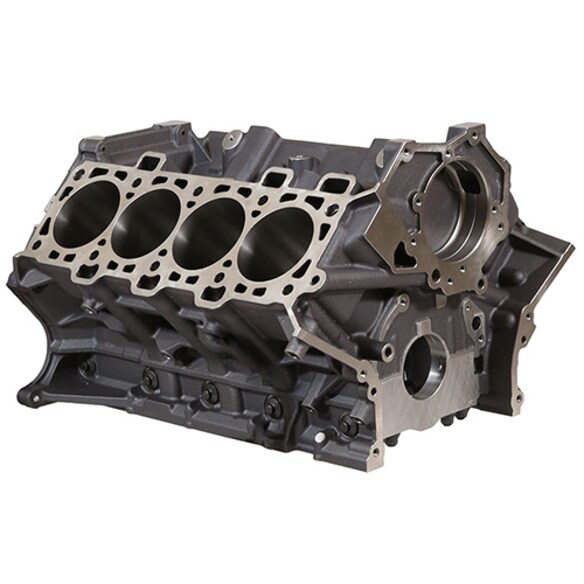

Ford Performance cast iron version of the Coyote engine block. Cast from a proprietary grade class 50 iron. Designed for extra strength for max-effort / boosted Coyote engine builds.

  • Deck height: 227 mm (8.937")
  • Rough bore can be finished to 93 mm (3.661") GEN 3 size
  • Maximum bore: 95.0 mm (3.740")
  • Maximum stroke: 99 mm (3.897")
  • Maximum displacement: 5.6L
  • Standard Coyote 100 mm bore spacing
  • Lengthened bores for added strength
  • Revised deck design for added strength around the water jackets
  • Designed for 12 mm ARP head stud kit 456-4303
  • Head bolt holes are NOT machined for the production length head bolts.
  • Material available to drill and tap for production length head bolts
  • Billet steel 6 bolt main caps with ARP hardware
  • Accepts Gen 1 and Gen 2 Coyote 5.0L cylinder heads
  • Accepts Gen 1, Gen 2, and Gen 3 GT350 5.2L cylinder heads
  • Requires head gasket to match cylinder head
  • Weight = 203# when finished to a 94mm bore
  • Recommended forged steel crankshafts M-6303-M52B or M-6303-M52P

Technical Specifications

Details:

  • Country of Origin: United States

  • Emission Type: Not Emissions Related

  • Warranty: Not Available

  • UPC: 756122014042

  • Catalog: FPP

Fits These Vehicles

  • Ford Mustang 2011-2017
