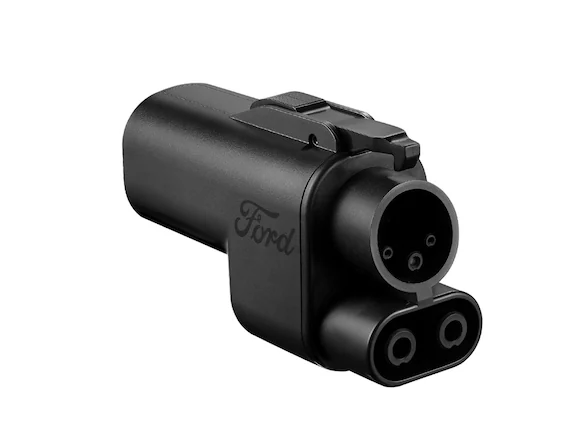

Ford Fast Charging Adapter (NACS)
SKU: VRK9Z10E826A
Non-Returnable Item
About This Item
- OEM-certified adapter
- Rated for up to 500 amps and 1,000 volts
- Lightweight and easy to carry in your glove box
- Ford Owners can activate Tesla Superchargers through FordPass® App or the Public Charging App on your vehicle's touchscreen
- For more information visit Fast Charging Adapter Frequently Asked Questions
- NOTE: Adapter is not compatible with Level 1 or Level 2 Alternating Current (AC) chargers, including Tesla Destination Chargers and home chargers with NACS connectors
Warranty Info
- 3 year from purchase date (or delivery date in California).
- Warranty return requests can be initiated by calling 1-800-392-FORD (3673) and, when prompted, say “Charging”.
How to Use
To Start Charging:
- Find – Use the FordPass® App or the in-vehicle Public Charging App to find designated Tesla Superchargers.

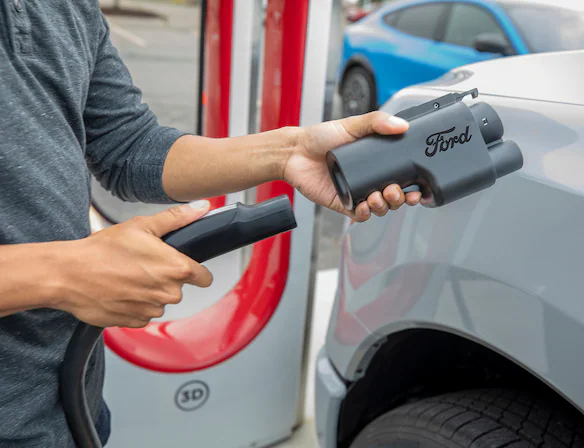

- Attach – Attach the adapter to the Tesla Supercharger cord. Push until you hear a click.
- Open – Open your EV charge port door and flip down the dust cap.

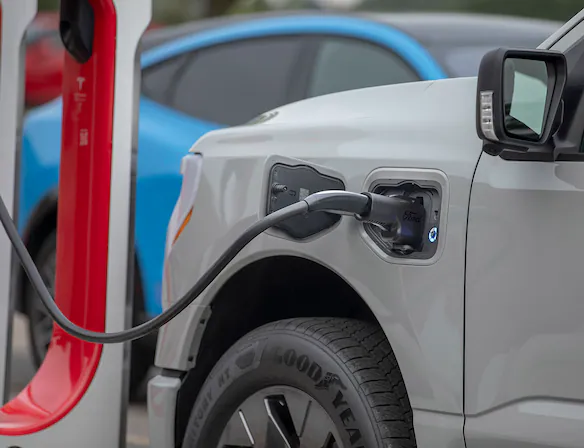

- Plug in – Push the adapter into the charge port until it clicks. With Plug & Charge, charging starts automatically.
- Stop – Stop charging by pressing the unlock button on the vehicle charge port.
- Release – Remove the adapter from the charge port by pressing the release lever on the top of the adapter.
- Detach – Detach the adapter from the Tesla Supercharger cord by pressing the cable release lever.
Rated Current | 500 A |
Rated Input / Output | 1,000 V |
Weatherproof Rating | IP67 |
Operating Temperature | -22°F to 122°F |
Storage Temperature | -40°F to 185°F |
Connector | CCS1 |
Inlet | NACS Supercharger |
Dimensions | 6.9 in. x 2.7 in. x 4.1 in. |
Weight | 2 lbs. |
Materials | PC/PA66/Copper |
