Mustang 2018-2021 GEN 3 Coyote 460HP Automatic Transmission Crate Engine

SKU: M6007M50CAUTO

Error IconA triangle shape with a exclamation punctuation mark inside to signal a warning or error
Select vehicle to check fit:No Vehicle selected
Pickup Required
Pickup: Free at Dealer by Mar. 8

About This Item

Product Details

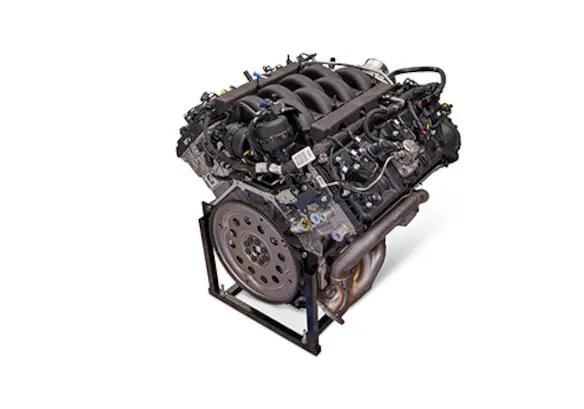

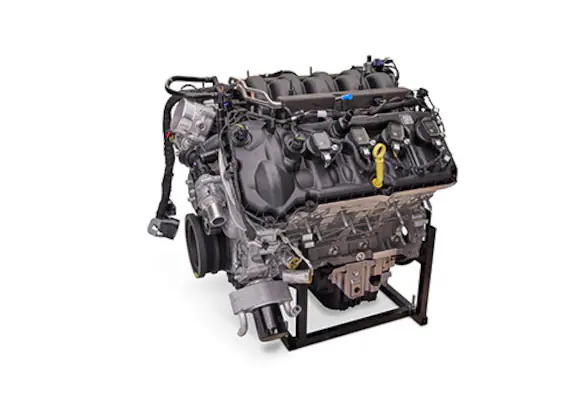

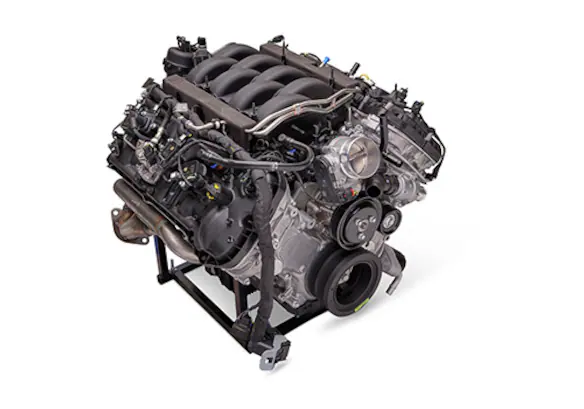

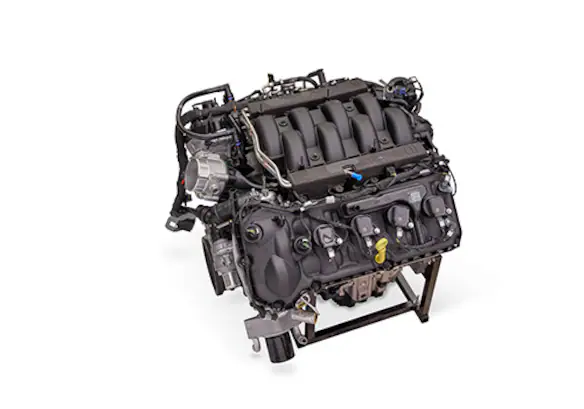

The Ford Performance all-aluminum 2018 5.0L Coyote crate engine is a modern 5.0L 32-valve DOHC V-8 that uses advanced features like Direct and Port Fuel Injection, Twin Independent Variable Camshaft Timing (Ti-VCT), high-flow cylinder heads, and heightened compression ratio to deliver 460 horsepower @ 7000 rpm and 420 ft.-lb.+ of torque @ 4600 rpm (with premium fuel). The lightweight  plasma transferred wire arc spray aluminum cylinder block features cross-bolted main bearing caps and thick main bearing bulkheads for bottom-end strength, optimized oil drainback and windage control to improve high-rpm performance.

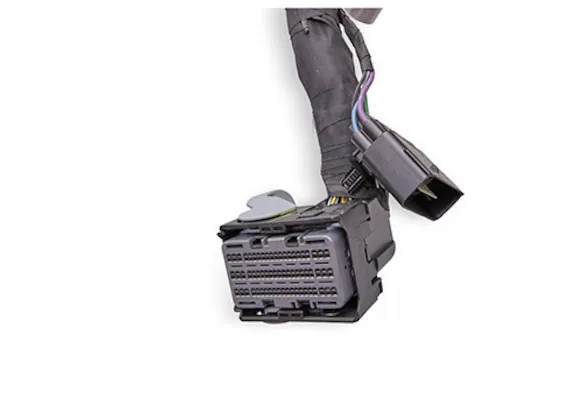

Same as M-6007-M50C, except with automatic transmission engine harness and flex plate

  • 460 horsepower 420 ft.-lb.+ of torque
  • 12.0:1 Compression ratio
  • Hypereutectic aluminum pistons
  • Sintered steel connecting rods as used on BOSS302 Mustang
  • Forged steel crankshaft Aluminum block which features plasma transferred wire arc spray weld liner coating
  • Longer, 12 mm head bolts for higher clamp load
  • 10 qt capacity oil pan
  • Tuned composite intake manifold provides efficient air delivery and weight savings

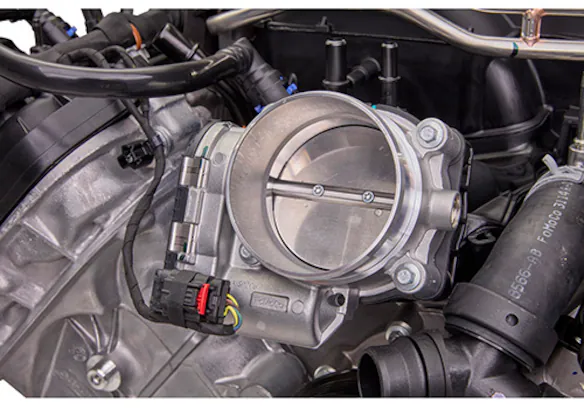

  • 80 mm single bore "drive by wire", electronic throttle body with variable runner control
  • High-flow aluminum cylinder heads, dual overhead camshaft (DOHC), four valves per cylinder, variable intake and exhaust camshaft timing

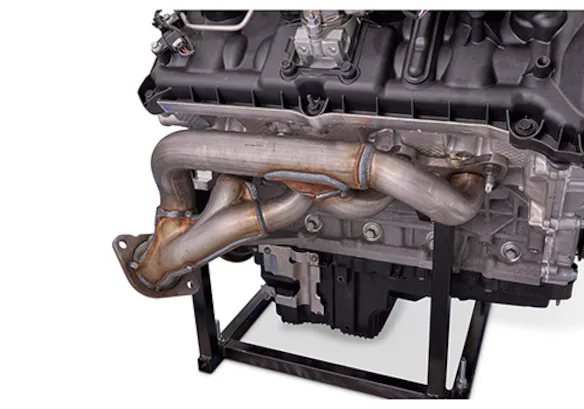

  • Mustang GT 409 stainless-steel tubular exhaust manifold on the RIGHT SIDE ONLY
  • Includes automatic transmission flex plate, for engine equipped with dual-mass flywheel, see M-6007-M50C
  • Engine mount bosses and bell housing mount pattern common to 4.6L modular engines
  • Vehicle harness and PCM not included-can be used with Ford Performance M-6017-M50B Control Pack AND aftermarket transmission controller (4R70, 6R80, or similar)
  • Does not include alternator, for alternator kit see M-8600-M50BALT  or M-8600-M50ALTA
  • 5.0L Coyote Air Conditioning kit available, see M-8600-M50AC
  • 5.0L Mustang motor mount kit available, see M-6038-M50
  • 5.0L Mustang engine cover kit available, see M-9680-M50B
  • Photo and specs may vary
  • Engine weight: 445 lbs.

Details:

  • Country of Origin: Canada

  • Emission Type: Replacement Parts

  • Warranty: Available

  • UPC: 756122010891

  • Catalog: FPP

Instructions:

  • Mustang 2018-2021 GEN 3 Coyote 460HP Automatic Transmission Crate Engine: Instruction Guide
