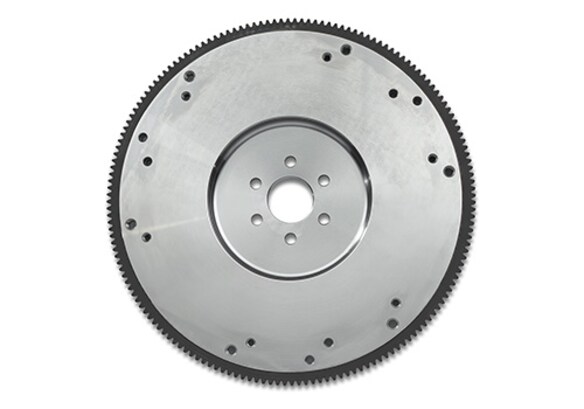

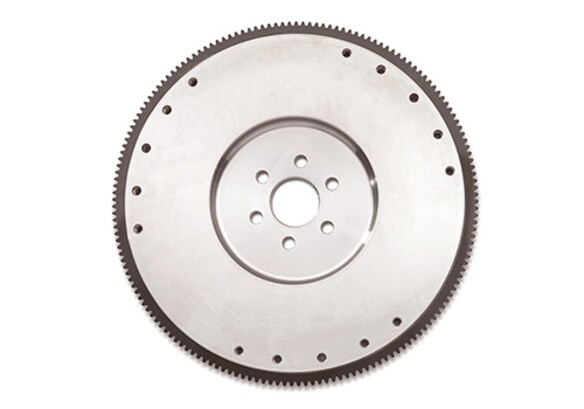

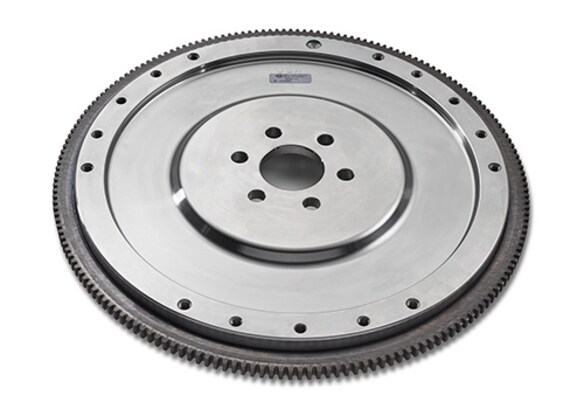

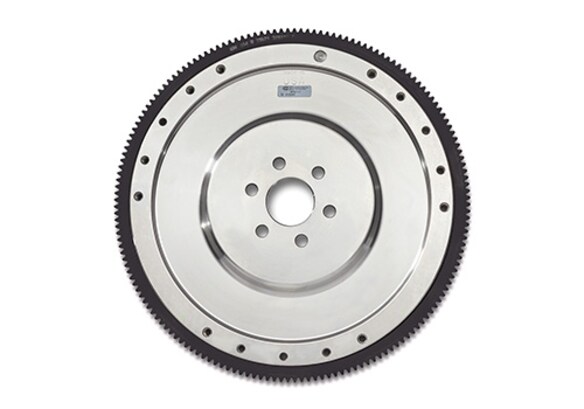

MANUAL TRANSMISSION FLYWHEEL STEEL 157T 0
SKU: M6375D302B
$335.00
About This Item
Product Details
| Part Number | Material/Weight | Clutch Damper assembly counter bore | Ring Gear | Crank Bolts | Unbalanced | Application | Foot Notes |
| Billet Steel 23 lbs | 6.00" | 157-tooth | 6-bolts | 28.2 oz.-in. | Pre-1981 302 engines and 351 engines using 157T flywheels with 10.5" diaphram clutch. Meets SFI 1.1 | 1 | |
| Aluminum 12 lbs | 6.00" | 157-tooth | 6-bolts | 28.2 oz.-in. | Pre-1981 302 engines and 351 engines using 157T flywheels with 10.5" diaphram clutch. Reduced rotating mass. Meets SFI 1.1 | 1 | |
| Cast Iron | 157-tooth | 6-bolts | 50.0 oz.-in. | 1981 and later 302 engines. Direct replacement for 1986-1995 5.0 Mustang | 1 | ||
| Billet Steel 23 lbs | 6.00" | 157-tooth | 6-bolts | 50.0 oz.-in. | 1981 and later 302 engines using 157T flywheels with 10.5" clutch. Meets SFI 1.1 | 1 | |
| Billet Steel 23 lbs | 6.00" | 157-tooth | 6-bolts | 0 oz.-in. | All small blocks using 157T flywheel, 10.5" diaphram clutch with 0-unbalance rotating assemblies. Meets SFI 1.1 | 1 | |
| Aluminum 12 lbs | 6.00" | 157-tooth | 6-bolts | 0 oz.-in | All small blocks using 157T flywheel, 10.5" diaphram clutch with 0-unbalance rotating assemblies. Reduced rotating mass. Meets SFI 1.1 | 1 | |
| Billet Steel 29 lbs | 6.25" | 164-tooth | 6-bolts | 0 oz.-in. | Fits 6-bolt crank 4.6 Mustang with 10.5" clutch and some 11" clutch applications with 6-bolt pressure plate. Does not fit 2005-2013 Mustang production clutch disc. Meets SFI 1.1 | 1 2 4 | |
| Billet Steel 29 lbs | 6.25" | 164-tooth | 8-bolts | 0 oz.-in. | Fits 8-bolt crank 4.6 Mustang with 10.5" clutch and some 11" clutch application with 6-bolt pressure plate. Does not fit 2005-2013 Mustang production clutch disc. Meets SFI 1.1 | 1 2 4 | |
| Billet steel 30 lbs | 6.00" | 164-tooth | 6-bolt | 28.2 oz.-in. | Pre-1981 302 engines and 351 engines using 164T flywheels. 10.5" Long, 11" Long and diaphram clutches Meets SFI 1.1 | ||
| Billet steel 30 lbs | 6.00" | 164-tooth | 6-bolt | 0 oz.-in. | All small blocks using 164 tooth flywheels with 0-unbalance rotating assemblies. 10.5" Long, 11" Long and diaphram. Meets SFI 1.1 | ||
| Billet steel 29 lbs | 6.00" | 184-tooth | 6-bolt | 0 oz-in. | Fits 1965 and newer 360, 390, 427 FE engines. 11" Long and diaphram, 11.5 and 12" Long clutches. Meets SFI 1.1 |
NOTES: 1 Diaphragm clutch uses metric bolts and dowel pins. Requires metric pressure plate bolts N602549-S51M and alignment dowel pins D1FZ-6397-B or Ford Racing kit M-6397-A302. 2 4.6L engines may have 6 or 8 bolts to attach to the crankshaft.. Romeo built engines have 6 bolts and Windsor built engines have 8 bolts. All Cobra engines have 8 bolts. Contact the Ford Performance Parts Tech-line at 800-367-3788 for more information. 4 Requires bolt and dowel kit M-6397-A46 for 11" clutch applications.
Technical Specifications
Details:
Country of Origin: United States
Emission Type: Not Emissions Related
Warranty: Available
UPC: 756122110218
Catalog: FPP
