Key Features

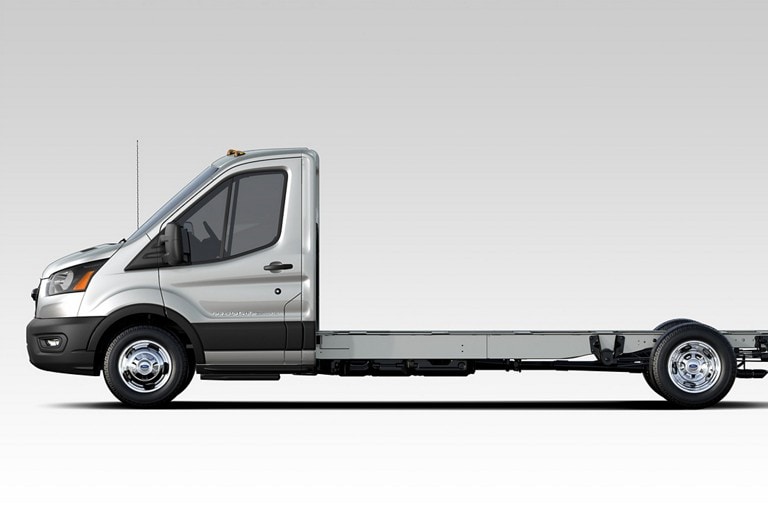

Ford Transit^® Chassis Cab Length Options

2025 Ford Transit^® Chassis Cab models are available in three lengths: 138", 156" and 178", and offer a GVWR of 9,150-11,000 lbs.*

*Max payload varies and is based on accessories and vehicle configuration. See label on doorjamb for carrying capacity of a specific vehicle.

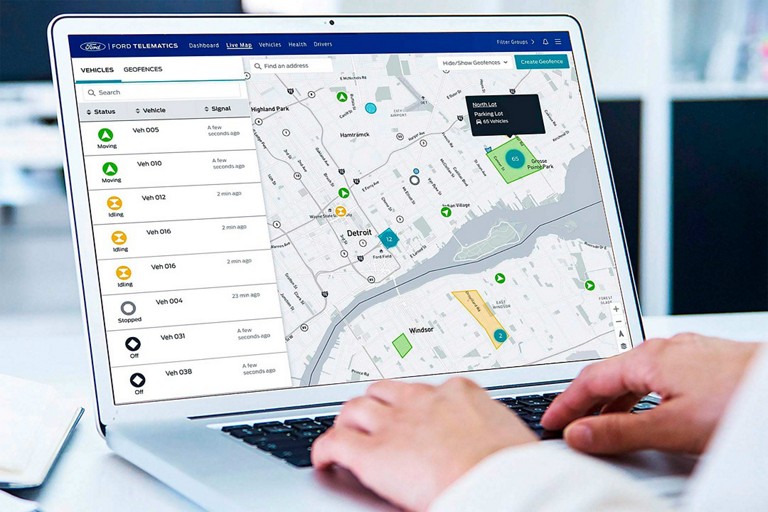

Ford Pro^™ Telematics

Take productivity to the next level. Help improve your business operations with a Ford Pro Telematics subscription.* Monitor your vehicles to understand where they go, how they’re used, and how they’re running. Modems come standard in 2025 Ford Transit^® Chassis Cab models, or an available plug-in device can connect your entire fleet, even if they’re not Ford vehicles.

*Available on vehicles with embedded modem or equipped with approved plug-in device (PID). May require modem activation. Ford Telematics and Ford Data Services require a purchased subscription. Terms and conditions apply. Telematics service and features, and access to vehicle data depend on subscription and compatible AT&T network availability. Evolving technology/cellular networks/vehicle capability may limit functionality and prevent operation of connected features.

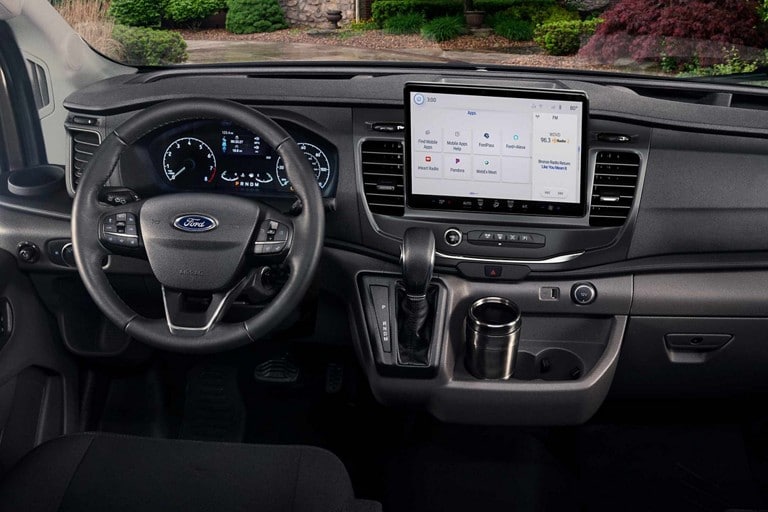

SYNC^® 4

The latest generation of available SYNC^® 4 displays innovative, upgraded technology on a 12" multi-function display. Equipped with Enhanced Voice Recognition, cloud-based connectivity, and driver-assist technologies to bring you a seamless and personalized driving experience.²⁷ You can also add available features like Navigation, Adaptive Cruise Control and Intersection Assist.

Modified Display.

Exterior Features

Appearance

Standard

Frame-Rail Extension Adapters
Audio, Antenna - Fender Mounted
Body Side Moldings – Carbon Black
Front License Plate Bracket
Grille, Honeycomb Mesh Grille with Carbon Black Surround
Auto High-Beam Headlamps
Mirrors - Exterior Delete
Roof Marker Lamps
Halogen Headlamps with Autolamp
Stop Turn Tail Lamp

Optional

Front Bumper – Body Colored. Includes Front Fog Lamps
Wheel Well Liners - Black (Front Only)
Wiper-Activated Headlamps
Mirrors Short Arm - Power Adjusting, Manual-Folding Heated with Turn Signals
Mirrors Long Arm - Power Adjusting, Manual-Folding, Heater with Turn Signals
Front Fog Lamps
Honeycomb Mesh Grille with Chrome Surround (included in Exterior Upgrade Package)
Chrome High-Intensity Discharge (HID) Headlamps
Black High-Intensity Discharge (HID) Headlamps (not Available with 3.5L PFDi V6 )

Protection

Standard

Rear Bumper Delete

Optional

Keyless-Entry Keypad
Key - 2 Additional (4 Total) with Key Fobs

Windows & Glass

Standard

Windows - Tinted Glass
Windows - Rear Window

Interior Features

Climate

Standard

Air Conditioning

Optional

Auxiliary Heater A/C Prep Package Without Rear Controls

Comfort and Convenience

Standard

Horn – Single Note Electric
Rearview Mirror (when Equipped with Rear Glass)
Airbag Cut-Off Switch - Passenger-Side (Not Available with Seat Delete or Right-Hand Door Delete)
Medium Center Console. Includes An Integrated Shifter and A Dual Cup Holder
Headliner – Cloth
Adaptive Cruise Control With Adjustable Speed Limiting Device (ASLD)
Post-Collision Braking
Pre-Collision Assist with Automatic Emergency Braking (AEB)
Forward Collision Warning
Floor Covering, Vinyl - Front
Glove Box (Locking)
Instrumentation – Tachometer, Fuel Level and Coolant Temperature
Interior Lighting
Lighting, Front Dome Lamp with Map Lights and Theater-Dimming
A-Pillar Assist Handles (Driver and Passenger-Side)
Powerpoint, 12V - One in Instrument Panel, One in Center Console
Sun Visors
Automatic Rain-Sensing Windshield Wipers
Telematics Essentials
Front Overhead Shelf Delete
Parking Brake – Electric (SRW Configurations Only)
Cruise Control. Includes Adjustable Speed Limiting Device (ASLD)
Small Center Console with Integrated Shifter and Deployable Cup Holder
Accessory Delay – 30 Minutes
Ford Pro^™ Telematics

Optional

Floor Covering, Carpet - Front
Vehicle Maintenance Monitor
Power Outlet – 110V/400W
High-Capacity Upfitter Switches
Upfitter Interface Module (UIM)
Cutaway/ Chassis Cab 138-inch, 156-inch, 178-inch GVWR 9,150 - 11,000 Lbs.
Back Up Alarm
Front Overhead Shelf
Illuminated Sun Visors
Large Center Console. Includes An Integrated Shifter, A Dual Cup Holder and An Additional Storage Area
Intelligent Access with Push-Button Start
Blind Spot Information System (BLIS^®) - Lane Keeping System Not Included
Front Sensing System
All-Weather Floor Mats
Reverse Sensing System

Entertainment Systems

Standard

AM/FM Stereo with 4" Display, Bluetooth, and Dual USB Ports

Optional

SYNC 3 with 4" Display, AM/FM Stereo, Bluetooth, and Dual USB Ports
SYNC 4 with 12" Display and Connected Navigation
SYNC 4 with SiriusXM^® with 360L, HD Radio^™ and 12" Display with Connected Navigation
SYNC 4 with SiriusXM^® with 360L, HD Radio^™, and 12" Display. Connected Navigation with Traffic Sign Recognition, Speed Assist, Adaptive Cruise Control and Intersection Assist
SYNC 4 with SiriusXM^® with 360L, HD Radio^™, Navigation and 12" Display. Built-In Navigation with Traffic Sign Recognition and Intelligent Speed Assist

Seating

Standard

2-Passenger Seating
Driver and Front-Passenger Manual Reclining Bucket Seats with Adjustable Headrest (Includes Driver-Side and Passenger-Side Inboard Armrest)
Dark Palazzo Gray Vinyl, 2-Way Manual Driver and 2-Way Manual Passenger Seats with Driver Seat Armrest Only

Optional

Dark Palazzo Gray Cloth, 2-Way Manual Driver and 2-Way Manual Passenger Seats - Chassis Cab Is Only Available with 11,000 GVWR Configurations
Dark Palazzo Gray Cloth, 2-Way Manual Driver and 2-Way Manual Passenger Seats.
Dark Palazzo Gray Cloth, 10-Way Power Heated Driver and 10-Way Power Heated Passenger Seats
Dark Palazzo Gray Vinyl, 2-way manual Driver and 2-way manual Passenger seats with Driver and Passenger seat armrests

Packages

Power and Handling

Handling

Standard

Steering - Power Rack and Pinion
Electric Power-Assisted Steering (EPAS)
Steering Wheel - Tilt & Telescopic Column Polyurethane 4-Spoke Wheel
Manual Parking Brake (9,950lb/10,360lb GVWR Configurations Only)
Suspension, Front - Independent Macpherson-Strut, Stabilizer Bar
Suspension, Rear - Leaf Springs, Heavy-Duty Gas Shock Absorbers
AdvanceTrac^® with Roll Stability Control^™ (RSC^®)
Base Frontal Area Limitation
Side-Wind Stabilization
Hill Start Assist

Optional

Wheelbase - 138-inch
Wheelbase - 156-inch
Wheelbase - 178-inch
Heavy-Duty Front Axle
Trailer Brake Controller (TBC). Requires Trailer Wiring Provisions
All-Wheel Drive
156" W/B Low Roof - GVWR 9950 Lbs. SRW
178" W/B Low Roof - GVWR 9950 Lbs. SRW
Smart Acceleration Truncation (Fleet Only)

Power

Standard

Auxiliary Fuel Port
3.5L PFDi V6 Engine
10-Speed Automatic Overdrive with SelectShift^®
Fuel Tank – Capless Fuel Fill, 25 Gallons (midship)
Single AGM Battery (70 Amp-Hr)
Alternator – 250 Amp (3.5L PFDi V6 and 3.5L EcoBoost^® V6 Engines)

Optional

Push Down Manual Parking Brake (Standard with 11,000 GWVR Configuration Only)
Dual Alternator (250 Amps Each). Includes Auxiliary Fuse Panel with High Spec Interface Connector (3.5L EcoBoost V6 Only)
Auxiliary Fuse Panel with High Spec Interface Connector
3.5L EcoBoost^® V6 Engine
Engine Block Heater (400W Rating)
Extended Range Fuel Tank – Capless Fuel Fill, 31 U.S. Gallons (midship)
Dual AGM Batteries (70 Amp-Hr Each)

Wheels & Tires

Standard

Tires, 195/75R16C 107/105 R BSW All-Season (RWD with Standard Front Axle Configurations Only) - (DRW)
Tires 205/75R16C 113/111 BSW All-Season (AWD, 11,000 GVWR or RWD with Heavy-Duty Front Axle Configurations Only) - (DRW)
Tires, 235/65R16 BSW All-Season - (SRW)
16-inch Silver Steel Wheel with Black Hubcap (Standard Front Axle Configurations Only)
16-inch Silver Steel Wheel with Exposed Lug Nuts (Heavy-Duty Front Axle Configurations Only) SRW
16-inch Heavy-Duty Silver Steel Wheel with Exposed Lug Nuts (DRW)
Spare Tire and Wheel Delete

Optional

16-inch Heavy-Duty Forged Aluminum Wheel (Standard Front Axle Configurations Only). Available with Exterior Upgrade Package – DRW (Standard Front Axle Configurations Only)
16-inch Heavy-Duty Forged Aluminum Wheel (heavy-Duty Front Axle Configurations Only). Available with Exterior Upgrade Package – DRW (heavy-Duty Front Axle Configurations Only)
16-inch Heavy-Duty White Steel Wheel with Exposed Lug Nuts (DRW) (Fleet Only)
Wheels, Full-Size Spare Tire and Wheel with 3 Ton Jack
16-inch Silver Aluminum Alloy Wheel (SRW)
16-inch Black Aluminum Alloy Wheel (SRW)
16-inch Steel Wheel with Full Silver Wheel Cover
16" Sparkle Silver Alloy Wheel (SRW)
16" Matte Black Alloy Wheel (SRW)

Safety

Specifications

Exterior Dimensions

Chassis Cutaway
Length (Medium, Long, Long-EL)	Medium	Medium	Medium	Long	Long	Long	Long	EL	EL
Series	410	450	470	410	430	450	470	450	470
Model	T250	T350 HD	T350 HD	T250	T350	T350 HD	T350 HD	T350 HD	T350 HD
SRW / DRW	SRW	DRW	DRW	SRW	SRW	DRW	DRW	DRW	DRW
	[in.]	[in.]	[in.]	[in.]	[in.]	[in.]	[in.]	[in.]	[in.]
Wheelbase	138	138	138	155.7	155.7	155.7	155.7	178	178
Overall Length	223.3	223.3	223.3	241.1	241.1	241.1	241.1	263.4	263.4
Overall Cab Height (Curb)	87.3	86.8	86.8	87	87	86.5	86.5	86.5	86.5
Overall Width	80.8	83.1	83.1	80.8	80.8	83.1	83.1	83.1	83.1
Front Track	68.2	68.5	68.5	68.2	68.2	68.5	68.5	68.5	68.5
Rear Track - Dual	68.6	65.7	65.7	68.6	68.6	65.7	65.7	65.7	65.7
Cab Length	95.7	95.7	95.7	95.7	95.7	95.7	95.7	95.7	95.7
Cab Rear to Rear Axle	82.6	82.6	82.6	100.3	100.3	100.3	100.3	122.6	122.6
Top of Frame to Top of Cab	61.2	61.2	61.2	61.2	61.2	61.2	61.2	61.2	61.2
Rear Axle to End of Frame - or Rear Overhang	45.1	45.1	45.1	45.1	45.1	45.1	45.1	45.1	45.1
Load Height (Loaded)	25	24.7	24.5	25.9	25.5	25.7	25.4	25	24.6
Front Overhang	40.3	40.3	40.3	40.3	40.3	40.3	40.3	40.3	40.3
Chassis Cab
Length (Medium, Long, Long-EL)	Medium	Medium	Medium	Long	Long	Long	Long	EL	EL
Series	410	450	470	410	430	450	470	450	470
Model	T250	T350 HD	T350 HD	T250	T350	T350 HD	T350 HD	T350 HD	T350 HD
SRW / DRW	SRW	DRW	DRW	SRW	SRW	DRW	DRW	DRW	DRW
	[in.]	[in.]	[in.]	[in.]	[in.]	[in.]	[in.]	[in.]	[in.]
Wheelbase	138	138	138	156	156	156	156	178	178
Overall Length	223.3	223.3	223.3	241.1	241.1	241.1	241.1	263.4	263.4
Overall Cab Height (Curb)	87.2	86.7	86.7	86.9	86.9	86.4	86.4	86.4	86.4
Overall Width	80.8	83.1	83.1	80.8	80.8	83.1	83.1	83.1	83.1
Front Track	68.2	68.5	68.5	68.2	68.2	68.5	68.5	68.5	68.5
Rear Track - Dual	68.6	65.7	65.7	68.6	68.6	65.7	65.7	65.7	65.7
Cab Length	95.7	95.7	95.7	95.7	95.7	95.7	95.7	95.7	95.7
Cab Rear to Rear Axle	82.6	82.6	82.6	100.3	100.3	100.3	100.3	122.6	122.6
Top of Frame to Top of Cab	61.2	61.2	61.2	61.2	61.2	61.2	61.2	61.2	61.2
Rear Axle to End of Frame - or Rear Overhang	45.1	45.1	45.1	45.1	45.1	45.1	45.1	45.1	45.1
Load Height (Loaded)	24.8	24.7	24.3	25.6	25.3	25.6	25.2	24.9	24.4
Front Overhang	40.3	40.3	40.3	40.3	40.3	40.3	40.3	40.3	40.3

Interior Dimensions

Interior Dimensions
2025 Transit
Cutaway / Chassis Cab	Cutaway/Chassis Cab
Passenger Capacity	2
Head Room - First Row	40.8
Maximum Leg Room - First Row	39.7
Hip Room - First Row	61.1
Shoulder Room - First Row	69.9

Engine Specifications

Engine Specifications
Engine type	3.5L PFDi V6	3.5L EcoBoost^® V6
Displacement (cu. In../ ml)	213/3,497	213/3,497
Horsepower (SAE net @ RPM)	275 @ 6,250	310 @ 5,000
Torque (lb.-ft. @ RPM)	260 @ 4,000	400 @ 2,500
Compression ratio	11.8.1	10.0:1
Bore x stroke (in.)	3.64 x 3.41	3.64 x 3.41
Valvetrain	DOHC. 4 valve per cylinder	DOHC. 4 valve per cylinder
Fuel delivery	Sequential multiport electronic	Direct gasoline injection, dual turbochargers
Transmission type	10-speed automatic Selectshift^® with overdrive	10-speed automatic Selectshift^® with overdrive
Engine block material	Aluminum	Aluminum
Cylinder head material	Aluminum	Aluminum

Chassis Specifications

Chassis Specifications
Front suspension	Independent MacPherson-strut
Rear suspension	Leaf springs
Shock absorbers	Heavy-duty gas
Brakes	4-wheel anti-lock disc brakes
Steering	Electric Power Steering (EPS)

Cutaway- Maximum Towing Capabilities

Cutaway- Maximum Towing Capabilities - Conventional Towing
Transit Level	Roof Style	Length	Wheelbase	SRW/DRW	RWD/ AWD	Engine	GVWR	Max Payload	GCWR	Axle	Max. Conv.
Body Type	Body Type	Body Type	[in.]						Total	Ratio	Tow Cap.
							lbs.	lbs.	lbs.		lbs.
T-250	Low	Long	156	SRW	AWD	3.5L PFDi	9,070	4,563	12,000	4.1	6,200
T-250	Low	Regular	138	SRW	AWD	3.5L PFDi	9,070	4,618	12,000	4.1	6,300
T-250	Low	Long	156	SRW	RWD	3.5L PFDi	9,070	4,765	12,000	4.1	6,400
T-250	Low	Regular	138	SRW	RWD	3.5L PFDi	9,070	4,825	12,000	4.1	6,500
T-250	Low	Long	156	SRW	AWD	3.5L EcoBoost^®	9,070	4,489	12,600	3.73	6,700
T-250	Low	Long	156	SRW	RWD	3.5L EcoBoost^®	9,070	4,691	12,600	3.73	6,900
T-250	Low	Regular	138	SRW	RWD	3.5L EcoBoost^®	9,070	4,751	12,600	3.73	7,100
T-350	Low	Regular	138	SRW	AWD	3.5L EcoBoost^®	9,070	4,543	12,600	3.73	6,900
T-350	Low	Extended	178	SRW	AWD	3.5L PFDi	9,500	4,902	12,000	4.1	5,900
T-350	Low	Long	156	SRW	AWD	3.5L PFDi	9,500	4,993	12,000	4.1	6,200
T-350	Low	Regular	138	SRW	AWD	3.5L PFDi	9,500	5,048	12,000	4.1	6,300
T-350	Low	Extended	178	SRW	RWD	3.5L PFDi	9,500	5,126	12,000	4.1	6,100
T-350	Low	Long	156	SRW	RWD	3.5L PFDi	9,500	5,196	12,000	4.1	6,400
T-350	Low	Regular	138	SRW	RWD	3.5L PFDi	9,500	5,255	12,000	4.1	6,500
T-350	Low	Long	156	SRW	AWD	3.5L EcoBoost^®	9,500	4,919	12,600	3.73	6,700
T-350	Low	Regular	138	SRW	AWD	3.5L EcoBoost^®	9,500	4,973	12,600	3.73	6,900
T-350	Low	Long	156	SRW	RWD	3.5L EcoBoost^®	9,500	5,122	12,600	3.73	6,900
T-350	Low	Regular	138	SRW	RWD	3.5L EcoBoost^®	9,500	5,181	12,600	3.73	7,100
T-350	Low	Extended	178	SRW	AWD	3.5L EcoBoost^®	9,500	4,828	13,000	3.73	6,800
T-350	Low	Extended	178	SRW	RWD	3.5L EcoBoost^®	9,500	5,052	13,000	3.73	7,100
T-350	Low	Extended	178	SRW	AWD	3.5L PFDi	9,900	5,302	12,000	4.1	5,900
T-350	Low	Long	156	SRW	AWD	3.5L PFDi	9,900	5,393	12,000	4.1	6,200
T-350	Low	Extended	178	SRW	RWD	3.5L PFDi	9,900	5,526	12,000	4.1	6,100
T-350	Low	Long	156	SRW	RWD	3.5L PFDi	9,900	5,596	12,000	4.1	6,400
T-350	Low	Extended	178	DRW	AWD	3.5L EcoBoost^®	9,900	5,059	13,000	3.73	6,700
T-350	Low	Long	156	DRW	AWD	3.5L EcoBoost^®	9,900	5,133	13,000	3.73	6,900
T-350	Low	Regular	138	DRW	AWD	3.5L EcoBoost^®	9,900	5,190	13,000	3.73	7,100
T-350	Low	Extended	178	SRW	AWD	3.5L EcoBoost^®	9,900	5,228	13,000	3.73	6,800
T-350	Low	Extended	178	DRW	RWD	3.5L EcoBoost^®	9,900	5,283	13,000	3.73	6,900
T-350	Low	Long	156	SRW	AWD	3.5L EcoBoost^®	9,900	5,302	13,000	3.73	7,100
T-350	Low	Long	156	DRW	RWD	3.5L EcoBoost^®	9,900	5,353	13,000	3.73	7,100
T-350	Low	Regular	138	DRW	RWD	3.5L EcoBoost^®	9,900	5,415	13,000	3.73	7,300
T-350	Low	Extended	178	SRW	RWD	3.5L EcoBoost^®	9,900	5,452	13,000	3.73	7,100
T-350	Low	Long	156	SRW	RWD	3.5L EcoBoost^®	9,900	5,522	13,000	3.73	7,300
T-350HD	Low	Extended	178	DRW	AWD	3.5L PFDi	9,950	5,184	12,000	4.1	5,800
T-350HD	Low	Long	156	DRW	AWD	3.5L PFDi	9,950	5,257	12,000	4.1	6,000
T-350HD	Low	Regular	138	DRW	AWD	3.5L PFDi	9,950	5,314	12,000	4.1	6,100
T-350HD	Low	Extended	178	SRW	AWD	3.5L PFDi	9,950	5,352	12,000	4.1	5,900
T-350HD	Low	Extended	178	DRW	RWD	3.5L PFDi	9,950	5,408	12,000	4.1	6,000
T-350HD	Low	Long	156	SRW	AWD	3.5L PFDi	9,950	5,426	12,000	4.1	6,100
T-350HD	Low	Long	156	DRW	RWD	3.5L PFDi	9,950	5,477	12,000	4.1	6,200
T-350HD	Low	Regular	138	DRW	RWD	3.5L PFDi	9,950	5,539	12,000	4.1	6,400
T-350HD	Low	Extended	178	SRW	RWD	3.5L PFDi	9,950	5,576	12,000	4.1	6,100
T-350HD	Low	Long	156	SRW	RWD	3.5L PFDi	9,950	5,646	12,000	4.1	6,400
T-350HD	Low	Extended	178	DRW	AWD	3.5L EcoBoost^®	9,950	5,109	13,000	3.73	6,700
T-350HD	Low	Long	156	DRW	AWD	3.5L EcoBoost^®	9,950	5,183	13,000	3.73	6,900
T-350HD	Low	Regular	138	DRW	AWD	3.5L EcoBoost^®	9,950	5,240	13,000	3.73	7,100
T-350HD	Low	Extended	178	SRW	AWD	3.5L EcoBoost^®	9,950	5,278	13,000	3.73	6,800
T-350HD	Low	Extended	178	DRW	RWD	3.5L EcoBoost^®	9,950	5,333	13,000	3.73	6,900
T-350HD	Low	Long	156	SRW	AWD	3.5L EcoBoost^®	9,950	5,352	13,000	3.73	7,100
T-350HD	Low	Long	156	DRW	RWD	3.5L EcoBoost^®	9,950	5,403	13,000	3.73	7,100
T-350HD	Low	Regular	138	DRW	RWD	3.5L EcoBoost^®	9,950	5,465	13,000	3.73	7,300
T-350HD	Low	Extended	178	SRW	RWD	3.5L EcoBoost^®	9,950	5,502	13,000	3.73	7,100
T-350HD	Low	Long	156	SRW	RWD	3.5L EcoBoost^®	9,950	5,572	13,000	3.73	7,300
T-350HD	Low	Extended	178	DRW	AWD	3.5L EcoBoost^®	11,000	6,131	15,000	3.73	7,500
T-350HD	Low	Long	156	DRW	AWD	3.5L EcoBoost^®	11,000	6,144	15,000	3.73	7,500
T-350HD	Low	Regular	138	DRW	AWD	3.5L EcoBoost^®	11,000	6,248	15,000	3.73	7,500
T-350HD	Low	Extended	178	DRW	RWD	3.5L EcoBoost^®	11,000	6,344	15,000	3.73	7,500
T-350HD	Low	Long	156	DRW	RWD	3.5L EcoBoost^®	11,000	6,352	15,000	3.73	7,500
T-350HD	Low	Regular	138	DRW	RWD	3.5L EcoBoost^®	11,000	6,461	15,000	3.73	7,500

Chassis Cab - Maximum Towing Capabilities

Transit Level	Roof Style	Length	Wheelbase	SRW/DRW	RWD/ AWD	Engine	GVWR	Max Payload	GCWR	Axle	Max. Conv.
Body Type	Body Type	Body Type	[in.]						Total	Ratio	Tow Cap.
							lbs.	lbs.	lbs.		lbs.
T-250	Low	Long	156	SRW	AWD	3.5L PFDi	9,070	4,563	12,000	4.1	6,200
T-250	Low	Regular	138	SRW	AWD	3.5L PFDi	9,070	4,598	12,000	4.1	6,300
T-250	Low	Long	156	SRW	RWD	3.5L PFDi	9,070	4,765	12,000	4.1	6,400
T-250	Low	Regular	138	SRW	RWD	3.5L PFDi	9,070	4,805	12,000	4.1	6,500
T-250	Low	Long	156	SRW	AWD	3.5L EcoBoost^®	9,070	4,489	12,600	3.73	6,700
T-250	Low	Regular	138	SRW	AWD	3.5L EcoBoost^®	9,070	4,524	12,600	3.73	6,800
T-250	Low	Long	156	SRW	RWD	3.5L EcoBoost^®	9,070	4,691	12,600	3.73	6,900
T-250	Low	Regular	138	SRW	RWD	3.5L EcoBoost^®	9,070	4,731	12,600	3.73	7,000
T-350	Low	Extended	178	SRW	AWD	3.5L PFDi	9,500	4,865	12,000	4.1	5,900
T-350	Low	Long	156	SRW	AWD	3.5L PFDi	9,500	4,992	12,000	4.1	6,200
T-350	Low	Regular	138	SRW	AWD	3.5L PFDi	9,500	5,028	12,000	4.1	6,300
T-350	Low	Extended	178	SRW	RWD	3.5L PFDi	9,500	5,089	12,000	4.1	6,100
T-350	Low	Long	156	SRW	RWD	3.5L PFDi	9,500	5,194	12,000	4.1	6,400
T-350	Low	Regular	138	SRW	RWD	3.5L PFDi	9,500	5,235	12,000	4.1	6,500
T-350	Low	Long	156	SRW	AWD	3.5L EcoBoost^®	9,500	4,918	12,600	3.73	6,700
T-350	Low	Regular	138	SRW	AWD	3.5L EcoBoost^®	9,500	4,954	12,600	3.73	6,800
T-350	Low	Long	156	SRW	RWD	3.5L EcoBoost^®	9,500	5,120	12,600	3.73	6,900
T-350	Low	Regular	138	SRW	RWD	3.5L EcoBoost^®	9,500	5,161	12,600	3.73	7,000
T-350	Low	Extended	178	SRW	AWD	3.5L EcoBoost^®	9,500	4,790	13,000	3.73	6,800
T-350	Low	Extended	178	SRW	RWD	3.5L EcoBoost^®	9,500	5,014	13,000	3.73	7,000
T-350	Low	Extended	178	SRW	AWD	3.5L PFDi	9,900	5,265	12,000	4.1	5,900
T-350	Low	Long	156	SRW	AWD	3.5L PFDi	9,900	5,392	12,000	4.1	6,200
T-350	Low	Extended	178	SRW	RWD	3.5L PFDi	9,900	5,489	12,000	4.1	6,100
T-350	Low	Long	156	SRW	RWD	3.5L PFDi	9,900	5,594	12,000	4.1	6,400
T-350	Low	Extended	178	DRW	AWD	3.5L EcoBoost^®	9,900	5,022	13,000	3.73	6,600
T-350	Low	Long	156	DRW	AWD	3.5L EcoBoost^®	9,900	5,135	13,000	3.73	6,900
T-350	Low	Regular	138	DRW	AWD	3.5L EcoBoost^®	9,900	5,157	13,000	3.73	7,000
T-350	Low	Extended	178	SRW	AWD	3.5L EcoBoost^®	9,900	5,190	13,000	3.73	6,800
T-350	Low	Extended	178	DRW	RWD	3.5L EcoBoost^®	9,900	5,246	13,000	3.73	6,900
T-350	Low	Long	156	SRW	AWD	3.5L EcoBoost^®	9,900	5,304	13,000	3.73	7,100
T-350	Low	Long	156	DRW	RWD	3.5L EcoBoost^®	9,900	5,355	13,000	3.73	7,100
T-350	Low	Regular	138	DRW	RWD	3.5L EcoBoost^®	9,900	5,382	13,000	3.73	7,300
T-350	Low	Extended	178	SRW	RWD	3.5L EcoBoost^®	9,900	5,414	13,000	3.73	7,000
T-350	Low	Long	156	SRW	RWD	3.5L EcoBoost^®	9,900	5,524	13,000	3.73	7,300
T-350HD	Low	Extended	178	DRW	AWD	3.5L PFDi	9,950	5,146	12,000	4.1	5,700
T-350HD	Low	Long	156	DRW	AWD	3.5L PFDi	9,950	5,259	12,000	4.1	6,000
T-350HD	Low	Regular	138	DRW	AWD	3.5L PFDi	9,950	5,281	12,000	4.1	6,100
T-350HD	Low	Extended	178	SRW	AWD	3.5L PFDi	9,950	5,315	12,000	4.1	5,900
T-350HD	Low	Extended	178	DRW	RWD	3.5L PFDi	9,950	5,370	12,000	4.1	5,900
T-350HD	Low	Long	156	SRW	AWD	3.5L PFDi	9,950	5,428	12,000	4.1	6,100
T-350HD	Low	Long	156	DRW	RWD	3.5L PFDi	9,950	5,479	12,000	4.1	6,200
T-350HD	Low	Regular	138	DRW	RWD	3.5L PFDi	9,950	5,506	12,000	4.1	6,300
T-350HD	Low	Extended	178	SRW	RWD	3.5L PFDi	9,950	5,539	12,000	4.1	6,100
T-350HD	Low	Long	156	SRW	RWD	3.5L PFDi	9,950	5,648	12,000	4.1	6,400
T-350HD	Low	Extended	178	DRW	AWD	3.5L EcoBoost^®	9,950	5,072	13,000	3.73	6,600
T-350HD	Low	Long	156	DRW	AWD	3.5L EcoBoost^®	9,950	5,185	13,000	3.73	6,900
T-350HD	Low	Regular	138	DRW	AWD	3.5L EcoBoost^®	9,950	5,207	13,000	3.73	7,000
T-350HD	Low	Extended	178	SRW	AWD	3.5L EcoBoost^®	9,950	5,240	13,000	3.73	6,800
T-350HD	Low	Extended	178	DRW	RWD	3.5L EcoBoost^®	9,950	5,296	13,000	3.73	6,900
T-350HD	Low	Long	156	SRW	AWD	3.5L EcoBoost^®	9,950	5,354	13,000	3.73	7,100
T-350HD	Low	Long	156	DRW	RWD	3.5L EcoBoost^®	9,950	5,405	13,000	3.73	7,100
T-350HD	Low	Regular	138	DRW	RWD	3.5L EcoBoost^®	9,950	5,432	13,000	3.73	7,300
T-350HD	Low	Extended	178	SRW	RWD	3.5L EcoBoost^®	9,950	5,464	13,000	3.73	7,000
T-350HD	Low	Long	156	SRW	RWD	3.5L EcoBoost^®	9,950	5,574	13,000	3.73	7,300
T-350HD	Low	Extended	178	DRW	AWD	3.5L EcoBoost^®	11,000	6,067	15,000	3.73	7,500
T-350HD	Low	Long	156	DRW	AWD	3.5L EcoBoost^®	11,000	6,143	15,000	3.73	7,500
T-350HD	Low	Regular	138	DRW	AWD	3.5L EcoBoost^®	11,000	6,233	15,000	3.73	7,500
T-350HD	Low	Extended	178	DRW	RWD	3.5L EcoBoost^®	11,000	6,280	15,000	3.73	7,500
T-350HD	Low	Long	156	DRW	RWD	3.5L EcoBoost^®	11,000	6,351	15,000	3.73	7,500
T-350HD	Low	Regular	138	DRW	RWD	3.5L EcoBoost^®	11,000	6,447	15,000	3.73	7,500

Vehicle Highlights

Fuel Capacity (Standard)	25 gallons (midship)
Fuel Capacity (Optional)	31 gallons (midship)
Drive Type	RWD/ DRW
Available Engines	3.5L PFDi V6
Horsepower	275 HP @ 6,250 RPM
Torque	260 lbs- ft @ 4,000 RPM
Available Engines	3.5L EcoBoost^® V6
Horsepower	310 HP @ 5,000 RPM
Torque	400 lbs-ft @ 2,500 RPM
Transmission	10-speed automatic Selectshift^® with overdrive
Wheelbase 138"	C/A 138" (T-250 SRW,LR)
	C/A 138" (T-350 SRW,LR)
	C/A 138" (T-350HD DRW,LR)
Wheelbase 156"	C/A 156" (T-250 SRW,LR)
	C/A 156" (T-350 SRW,LR)
	C/A 156" (T-350HD SRW,LR)
	C/A 156" (T-350HD DRW,LR)
Wheelbase 178"	C/A 178" (T-350 SRW,LR)
	C/A 176" (T-350HD SRW,LR)
	C/A 178" (T-350HD DRW,LR)
Maximum Payload - SRW	5,646 lbs.C/A T-350HD SRW LR, 156" W/B 3.5L PFDi
	5,648 lbs.C/C T-350HD SRW LR, 156" W/B 3.5L PFDi
Maximum Payload -DRW	6,461 lbs.C/A T-350HD,DRW LR, 138" W/B 3.5L EcoBoost^®
	6,447 lbs.C/C T-350HD, DRW LR 138" W/B 3.5L EcoBoost^®
Maximum GVWR (Cutaway)	11,000 lbs. (T-350HD DRW)
Maximum GVWR (Chassis Cab)	11,000 lbs. (T-350HD DRW)
Warranty	Bumper to Bumper: 3 years / 36,000 miles
Gas Engine	Powertrain: 5 years / 60,000 miles
	Safety Restraint System: 5 years / 60,000 miles
	Corrosion (Perforation Only): 5 years / Unlimited miles
	Roadside Assistance Program: 5 years / 60,000 miles

SUVs & Cars

Capable, convenient, and versatile.

Trucks & Vans

Hauling, towing, and off-roading.

Electric & Hybrid

Performance Vehicles

Motorsports, Parts & Clubs

Commercial Vehicles

Ford Pro offers the tools, software and services to keep your business on track and crews on the road.

Future Vehicles

Moving ahead to move you.

Recent Searches

Clear

Suggested Searches

Search History

Recent Searches

Suggested Searches

Search History

2025 Transit® Chassis Cab

Est. City/HwyStandard

Seating for

Key Features

Ford Transit® Chassis Cab Length Options

Ford Pro™ Telematics

SYNC® 4

Exterior Features

Appearance

Standard

Optional

Protection

Standard

Optional

Windows & Glass

Standard

Interior Features

Climate

Standard

Optional

Comfort and Convenience

Standard

Optional

Entertainment Systems

Standard

Optional

Seating

Standard

Optional

Packages

Packages

Standard

Optional

Power and Handling

Handling

Standard

Optional

Power

Standard

Optional

Wheels & Tires

Standard

Optional

Safety

Safety

Standard

Optional

Security

Standard

Optional

Specifications

Exterior Dimensions

Interior Dimensions

Engine Specifications

Chassis Specifications

Cutaway- Maximum Towing Capabilities

Chassis Cab - Maximum Towing Capabilities

Vehicle Highlights

Build & Price

Request Quote

Ford Transit^® Chassis Cab Length Options

Ford Pro^™ Telematics

SYNC^® 4
